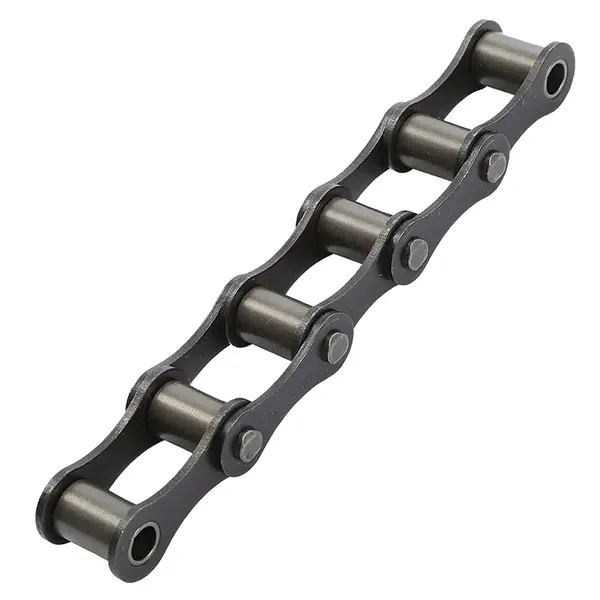

S88 Agricultural Roller Chain
As one of the roller chain manufacturers, suppliers, and exporters of mechanical products, We offer roller chains and many other products.
Please get in touch with us for details.
Roller Chain
The S88 agricultural roller chain is a type of roller chain commonly used in agricultural machinery such as combines, balers, and other farm equipment. It is designed to provide reliable and efficient power transmission in harsh environments, where dust, dirt, and moisture are present. The S88 agricultural roller chain is made up of a series of interconnected links, each consisting of two inner plates, two outer plates, two rollers, and two pins. The rollers rotate on the pins, allowing the chain to smoothly transfer power from one sprocket to another.
The S88 agricultural roller chain is distinguished by its robust construction and high-strength components. It typically has a thicker link plate and a larger diameter roller than standard roller chains, which enable it to handle higher loads and resist wear and fatigue better. Overall, the S88 agricultural roller chain is a durable and reliable option for powering agricultural machinery, and it is widely used in the farming industry.

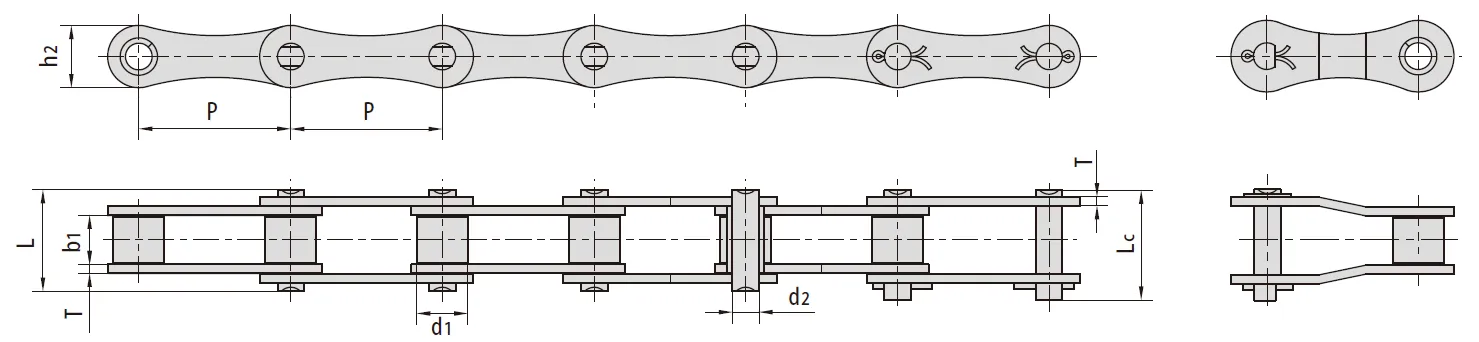

S88 Chain (Agricultural Chain) Dimensions:
| Chain No: | S88 Chain |
| Pitch (P): | 66.27 mm |
| Roller Diameter (d1): | 22.86 mm |
| Width Between Inner Plates (b1): | 28.58 mm |
| Pin Diameter (d2): | 8.90 mm |
| Pin Length (L): | 49.8 mm |
| Connecting Link Pin Length (Lc): | 53.0 mm |
| Inner Plate Depth (h2): | 26.2 mm |
| Plate Thickness (T): | 4.0 mm |
| Tensile Strength: | 14,612 LBS |
| Weight Per Meter: | 7.17 LBS |
S88 Agricultural Roller Chain Specifications:
1. Material: Alloy Steel
2. Surface Treatment: Shot peening
3. Application: This type of chain can be widely used in all agricultural machines & equipment.
4. Chain No: S32, S42, S52, S55, S62, S77, S88, etc.
| Product name | S88 Agricultural Roller Chain |
| Materials Available | 1. Stainless Steel: SS304, SS316, etc |
| 2. Alloy Steel: 45Mn, 42CrMo, 20CrMo, etc | |
| 3. OEM, according to your request | |
| Surface Treatment | Shot peening, Blackening, Oxygenation, Polishing, Zinc-plated, Nickel-plated, Anodized, etc. |
| Characteristic | Fire Resistant, Oil Resistant, Heat Resistant |
| Design criterion | ISO DIN ANSI & Customer's Drawing |
| Size | Customer's Drawing & ISO Standard |
| Package | Wooden Case / Container and pallet, or made-to-order |
| Certificate | ISO9001: 2008 |
| Advantage | First quality, Best service, Competitive price, Fast delivery |
| Delivery Time | 20 days for samples. Forty-five days for official order. |
Characteristics of S88 Agricultural Roller Chain:
The S88 agricultural roller chain has several characteristics that make it suitable for use in agricultural machinery. These include:
1. High-strength components: The S88 agricultural roller chain is made of high-strength materials that allow it to withstand high loads and resist wear and fatigue. This makes it ideal for use in harsh environments, where it may be exposed to dust, dirt, and moisture.
2. Robust construction: The S88 agricultural roller chain has a thicker link plate and larger diameter rollers than standard roller chains, which gives it added strength and durability. This design also helps to reduce wear between the chain and sprockets.
3. Wide range of sizes: The S88 agricultural roller chain comes in a wide range of sizes to fit different agricultural machinery applications. This allows farmers and equipment manufacturers to select the chain that best meets their needs.
4. Easy to maintain: The S88 agricultural roller chain is designed to be easy to maintain, with simple lubrication requirements. This helps to ensure that the chain lasts longer and performs better over time.
5. Cost-effective: Despite its high-strength and durable construction, the S88 agricultural roller chain is still relatively cost-effective compared to other types of roller chains. This makes it a popular choice for farmers and equipment manufacturers who want a reliable and affordable power transmission solution.
S88 Agricultural Roller Chain Attachments:

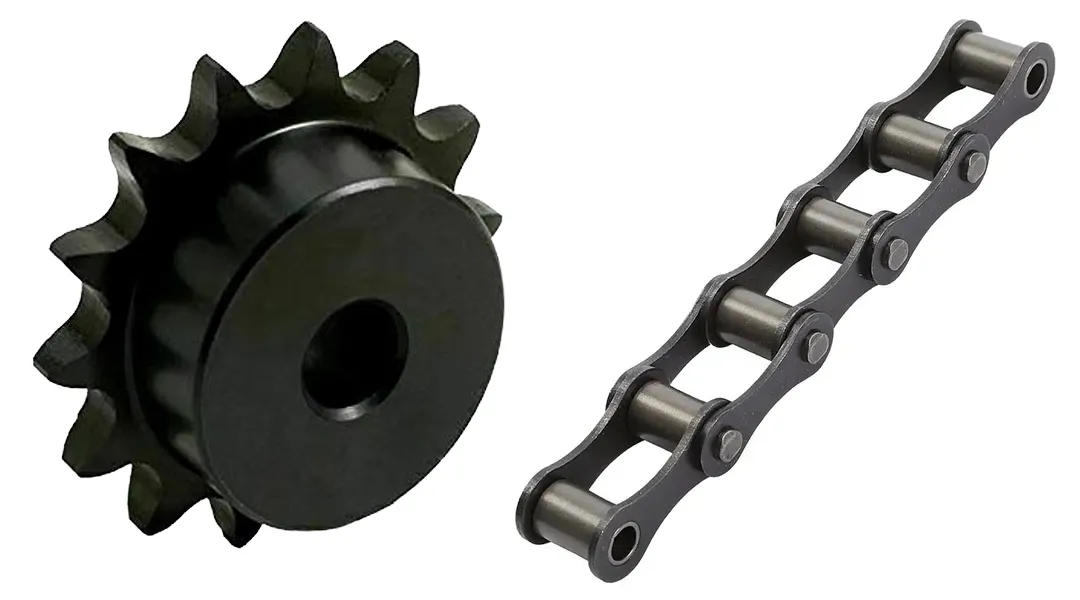

Agricultural Roller Chain Sprockets and Agricultural Roller Chain:
Agricultural roller chain sprockets and agricultural roller chains are two components that work together to provide power transmission in agricultural machinery.
Agricultural roller chain sprockets are toothed wheels that mesh with the rollers on an agricultural roller chain. The sprockets come in a range of sizes and tooth configurations to match the size and pitch of the chain. The teeth on the sprocket engage with the rollers on the chain, allowing the chain to transfer power from one sprocket to another. Agricultural roller chain sprockets are typically made of steel or cast iron and are designed to be durable and wear-resistant.
An agricultural roller chain, as mentioned earlier, is a series of interconnected links that transfer power from one sprocket to another. The chain is made up of inner and outer plates, pins, and rollers. The rollers rotate on the pins, allowing the chain to smoothly transfer power from one sprocket to another. An agricultural roller chain is designed to be durable and capable of handling high loads, making it ideal for use in agricultural machinery.
Together, agricultural roller chain sprockets and agricultural roller chains form a reliable and efficient power transmission system for agricultural machinery. The agricultural chain sprockets and agricultural chain work together to transfer power from the engine to the various components of the equipment, such as the wheels, blades, or belts, allowing it to perform the necessary tasks, such as harvesting, planting, or tilling. It is important to regularly inspect and maintain both the sprockets and chain to ensure that they are functioning properly and to prevent premature wear or failure.
