24B-G1 Rubber Top Roller Chain

As one of the roller chain manufacturers, suppliers, and exporters of mechanical products, We offer roller chains and many other products.

Please get in touch with us for details.

Mail:[email protected]

Roller Chain

The 24B-G1 rubber top chain is a non-marking chain that is designed for conveying finished wood products, glass, synthetic panels, and other sensitive materials. It is made with heat-treated precision components and has a premium rubber top. The G1-style rubber top has a smooth, flat surface that helps to prevent the chain from marking or damaging the surface of the material it is conveying.

The 24B-G1 rubber top chain has a pitch of 25.4 mm, a width between inner plates of 17.02 mm, a roller diameter of 15.88 mm, a pin diameter of 8.28 mm, a pin length of 39.7 mm, and a maximum added length of connecting link of 5.4 mm. It is available in a variety of lengths and can be customized to meet specific application requirements.

Here are some of the benefits of using the 24B-G1 rubber top chain:

  • It is non-marking, so it will not damage the surface of the material it is conveying.
  • It is made with heat-treated precision components, so it is strong and durable.
  • The rubber top helps to reduce noise and vibration.
  • It is available in a variety of lengths and can be customized to meet specific application requirements.

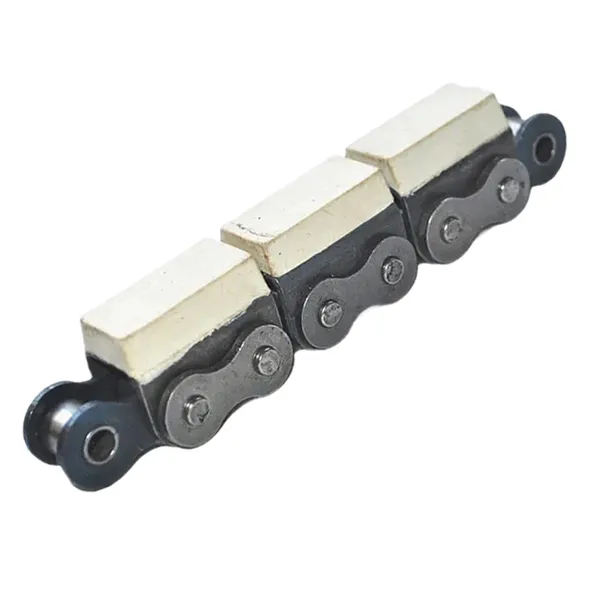

ep-roller-chain-13

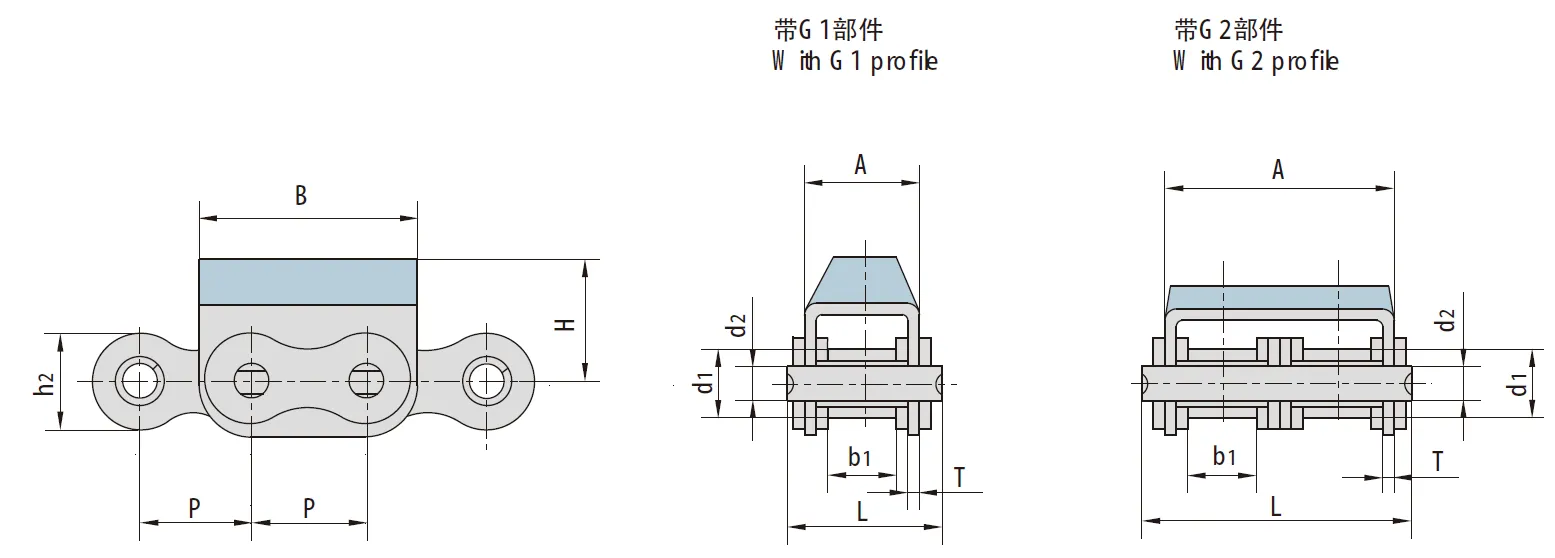

24B-G1 Rubber Top Chain Dimensions:

ep-roller-chain-13.11webp

hain No. Pitch Roller diameter Width between inner plates Pin diameter Pin length Plate and attachment dimension Tensile strength Weight per meter
P d1 max b1 min d2 max L
max
h2 max A B H T Q
min
q
mm mm mm mm mm mm mm mm mm mm kN/lbf kg/m
24B-G1 Chain 38.100 25.40 25.40 14.63 61.6 33.20 47.00 72.60 34.0 4.50 160.0/36363 11.25

24B-G1 Rubber Top Chain Specifications:

1. Chain Material: Alloy steel & Stainless steel
2. Rubber Material: NBR & NR
3. Rubber hardness: Shore hardness 65-75, 75-85
4. Chain Surface Treatment: Shot peening & Blackening & Bluing
5. Chain Size: 08B-G1; 08B-G2, 10B-G1; 10B-G2, 12B-G1, 12B-G2, 16B-G1; 16B-G2, 20B-G1, 20B-G2; 24B-G1

Product name  24B-G1 Rubber Top Chain (Rubber Top Roller Chain)
Materials Available  1. Stainless Steel: SS304, SS316, etc
2. Alloy Steel: 45Mn, 42CrMo, 20CrMo, etc
3. Appurtenant material: NR, NBR
4. OEM, according to your request
Surface Treatment Shot peening, Blackening, Oxygenation, Polishing, Zinc-plated, Nickel-plated, Anodized, etc.
Characteristic Fire Resistant, Oil Resistant, Heat Resistant
Design criterion ISO DIN ANSI & Customer's Drawing
Size Customer's Drawing & ISO Standard
Application Wood products factory, plywood factory
Package Wooden Case / Container and pallet, or made-to-order
Certificate ISO9001: 2008
Advantage First quality, Best service, Competitive price, Fast delivery
Delivery Time 20 days for samples. Forty-five days for official order.

Benefits of 24B-G1 Rubber Top Chain:

The 24B-G1 rubber top chain has a number of benefits, including:

1. Non-marking: The rubber top prevents the 24B-G1 rubber top chain from marking or damaging the surface of the material it is conveying. This is important for conveying finished wood products, glass, synthetic panels, and other sensitive materials.

2. Strong and durable: The 24B-G1 rubber top chain is made with heat-treated precision components, so it is strong and durable. This makes it a good choice for applications where the chain will be subjected to a lot of wear and tear.

3. Reduces noise and vibration: The rubber top helps to reduce noise and vibration, which can be a problem with other types of rubber top chains. This is important for applications where noise and vibration need to be minimized.

4. Available in a variety of lengths and can be customized: The 24B-G1 rubber top chain is available in a variety of lengths and can be customized to meet specific application requirements. This makes it a versatile chain that can be used in a wide range of applications.

Overall, the 24B-G1 rubber top chain is a high-quality chain that offers a number of benefits. If you are looking for a non-marking, strong, durable, and quiet chain, the 24B-G1 rubber top chain is a good option to consider.

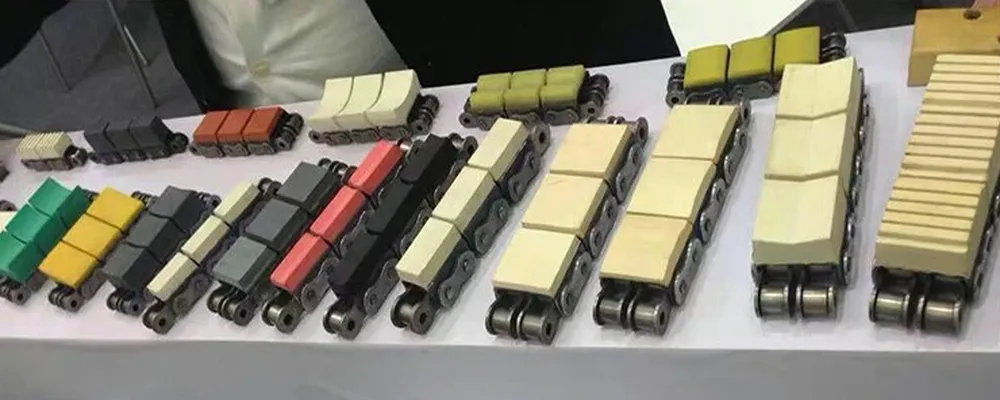

ep-roller-chain-13.12webp

Rubber Top Chain Sprockets and Rubber Top Chains

A rubber top chain sprocket is a type of sprocket that has a rubber coating on the top of the teeth. This coating helps to reduce noise and vibration, and it also protects the teeth from wear and tear. Rubber top chain sprockets are often used in applications where noise and vibration need to be minimized, such as in food processing and packaging plants.

A rubber top chain is a type of chain that has a rubber coating on the top of the links. This coating helps to reduce noise and vibration, and it also protects the links from wear and tear. Rubber top chains are often used in applications where noise and vibration need to be minimized, such as in food processing and packaging plants.

Here are some of the benefits of using rubber top chain sprockets and rubber top chains:

  • Reduce noise and vibration: The rubber coating on the chain sprockets and chains helps to reduce noise and vibration, which can be a problem with other types of sprockets and chains. This is important for applications where noise and vibration need to be minimized.
  • Protects the sprockets and chains from wear and tear: The rubber coating on the sprockets and chains helps to protect them from wear and tear, which can extend their lifespan.
  • Non-marking: The rubber coating on the sprockets and chains helps to prevent them from marking or damaging the surface of the material they are conveying. This is important for applications where the material being conveyed is delicate or sensitive.
  • Easy to install and maintain: Rubber top chain sprockets and rubber top chains are easy to install and maintain. This makes them a good choice for applications where frequent maintenance is required.

If you are looking for a sprocket or chain that is quiet, durable, and non-marking, a rubber top chain sprocket or rubber top chain is a good option to consider.

ep-roller-chain-13.13webp

China Rubber Top Chain Manufacturers

We specialize in chains made to customers’ drawings and specifications. Our advantage is reliable quality, competitive price, prompt delivery, and good service. Standard products include various transmission and conveyor chains, like roller chains, double pitch conveyor chains, hollow pin chains, leaf chains, flat top chains, side bow chains, lumber conveyor chains, 81X conveyor chains, agricultural chains, CA550 roller chains, S55 roller chains, silent chains, X458 conveyor chains, PIV chains, stainless steel chains, nickel/ zinc plated chain, slient chain, engineering chain, steel pintle chain, welded steel chain, drop forged chain, malleable iron chain, and many other types. Different kinds of attachments are available.

We are one of the best roller chain manufacturers. We have exported our products to clients around the world and earned a good reputation because of our superior product quality and after-sales service. We warmly welcome customers both at home and abroad to contact us to negotiate business, exchange information, and cooperate with us!
