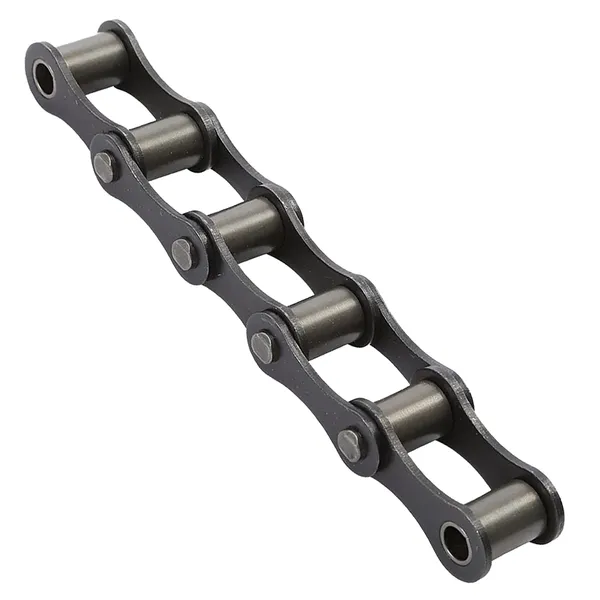

S77 Agricultural Roller Chain
As one of the roller chain manufacturers, suppliers, and exporters of mechanical products, We offer roller chains and many other products.
Please get in touch with us for details.
Roller Chain
The S77 agricultural roller chain is a specific type of roller chain used in agricultural applications. It is designed for use in heavy-duty machinery, such as combines, balers, and other types of farm equipment. The "S77" designation refers to the chain's size and pitch, which is a measurement of the distance between each link in the chain.
The S77 agricultural roller chain is known for its durability and strength, and it is often used in harsh environments where other types of chains may not hold up as well. It is also designed to be resistant to corrosion and wear, which is important in agricultural applications where machinery is exposed to dirt, dust, and other contaminants.
Overall, the S77 agricultural roller chain is a reliable and commonly used component in many types of farming equipment, helping to ensure that machinery can operate smoothly and efficiently even in challenging conditions.
S77 Chain (Agricultural Chain) Dimensions:
| Chain No: | S77 Chain |
| Pitch (P): | 58.34 mm |
| Roller Diameter (d1): | 18.26 mm |
| Width Between Inner Plates (b1): | 22.23 mm |
| Pin Diameter (d2): | 8.90 mm |
| Pin Length (L): | 43.2 mm |
| Connecting Link Pin Length (Lc): | 46.4 mm |
| Inner Plate Depth (h2): | 26.2 mm |
| Plate Thickness (T): | 4.0 mm |
| Tensile Strength: | 14,612 LBS |
| Weight Per Meter: | 5.86 LBS |
S77 Agricultural Roller Chain Specifications:
1. Chain material: Alloy steel or Stainless steel
2. Surface treatment: Shot peening / Zinc-Plated / Nickel-Plated / Dacromet-Plated
3. Application: These chains are widely used in the rice harvester, combine harvester, drill, and other agricultural machinery.
4. Characteristic: The S77 chain plate hole finally passes ball extrusion to ensure maximum fatigue resistance; parts of the shot peening treatment give the chain and sleeve higher fatigue strength.
| Product name | S77 Agricultural Roller Chain (Applied in combined harvester) |
| Materials Available | 1. Stainless Steel: SS304, SS316, etc |
| 2. Alloy Steel: 45Mn, 42CrMo, 20CrMo, etc | |
| 3. OEM, according to your request | |
| Surface Treatment | Shot peening, Blackening, Oxygenation, Polishing, Zinc-plated, Nickel-plated, Anodized, etc. |
| Characteristic | Fire Resistant, Oil Resistant, Heat Resistant |
| Design criterion | ISO DIN ANSI & Customer's Drawing |
| Size | Customer's Drawing & ISO Standard |
| Application | Corn harvester machine |
| Package | Wooden Case / Container and pallet, or made-to-order |
| Certificate | ISO9001: 2008 |
| Advantage | First quality, Best service, Competitive price, Fast delivery |
| Delivery Time | 20 days for samples. Forty-five days for official order. |
Benefits of Using the S77 Agricultural Roller Chain:
Here are some of the benefits of using the S77 agricultural roller chain:
1. Durability and strength. The S77 agricultural roller chain is made of high-quality materials and components, including solid rollers, heat-treated pins, and bushes. This makes it very durable and able to withstand the harsh conditions of agricultural use.
2. Long service life. The S77 agricultural roller chain is designed to last for many years, even in demanding applications. This is due to its high quality materials and construction, as well as its low-maintenance design.
3. Smooth operation. The S77 agricultural roller chain has a smooth and quiet operation, which helps to reduce vibration and noise. This is important in agricultural applications where noise pollution can be a problem.
4. Wide range of applications. The S77 agricultural roller chain can be used in a wide variety of agricultural applications, including tractors, harvesters, and balers. This makes it a versatile and reliable chain that can be used in a variety of settings.
S77 Agricultural Roller Chain Attachments:
S77 Agricultural Roller Chain Application Scenarios:
The S77 agricultural roller chain is a high-quality chain that is designed for use in a wide variety of agricultural applications. Here are some specific scenarios where the S77 chain can be used:
- Tractor: The S77 agricultural roller chain is used in a variety of tractor applications, such as the driveline, the hydraulic system, and the power takeoff. For example, the S77 agricultural chain can be used to transmit power from the engine to the wheels of the tractor, or to power the hydraulic system that operates the tractor's implements.
- Combine: The S77 agricultural roller chain is used in combines to power the cutting mechanism, the threshing mechanism, and the conveying system. For example, the S77 agricultural chain can be used to drive the blades that cut the grain or to power the conveyor system that moves the grain from the cutting mechanism to the threshing mechanism.

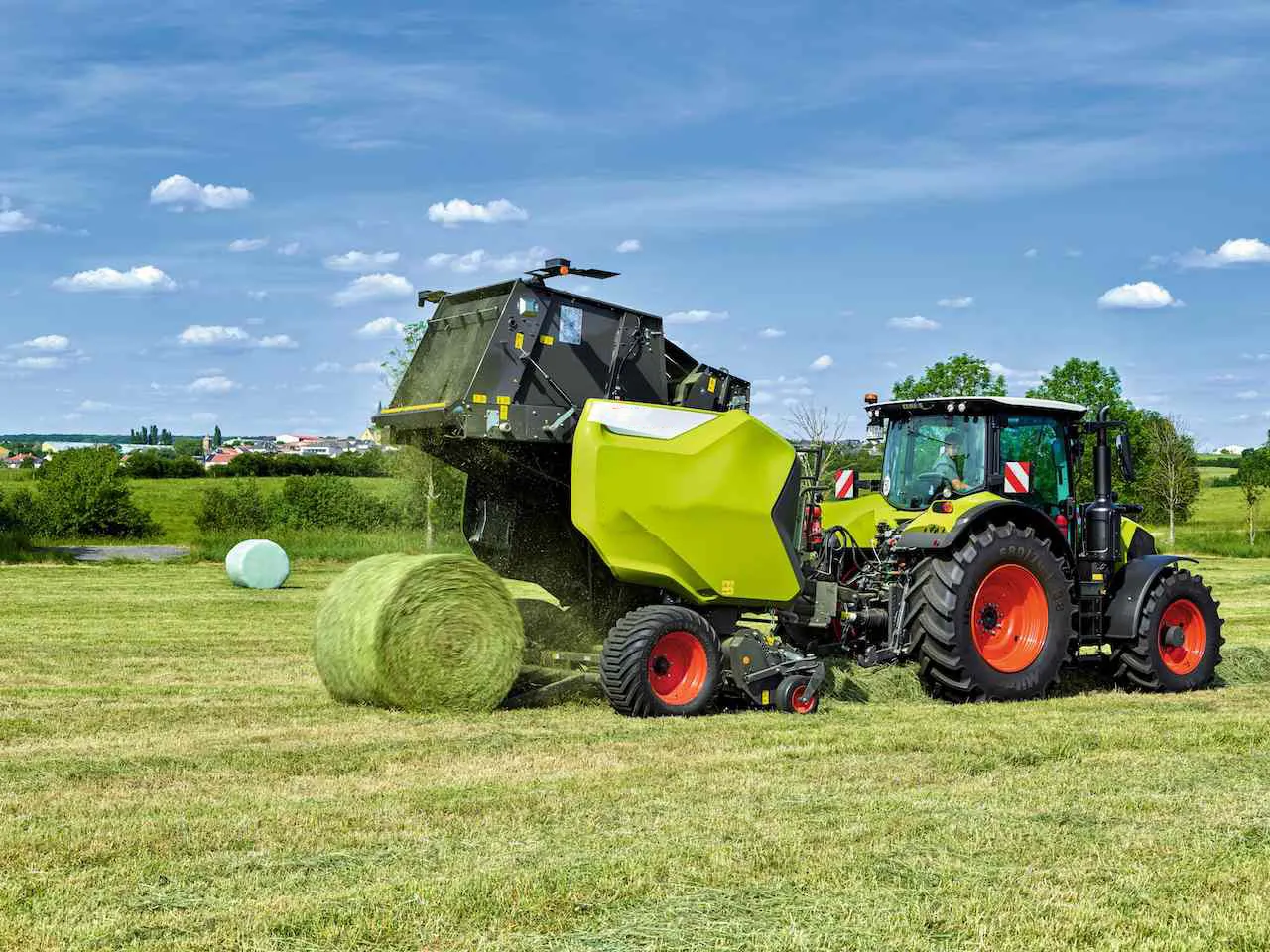

- Baler: The S77 agricultural roller chain is used in balers to power the baling mechanism and the conveyor system. For example, the S77 agricultural chain can be used to drive the rollers that compress the hay or to power the conveyor system that moves the baled hay out of the baler.
- Sprinkler system: The S77 agricultural roller chain is used in sprinkler systems to power the pumps and the valves. For example, the S77 agricultural chain can be used to drive the pump that circulates the water in the sprinkler system or to power the valves that control the flow of water to the sprinkler heads.
- Windrower: The S77 agricultural roller chain is used in windrowers to power the cutting mechanism and the conveying system. For example, the S77 agricultural chain can be used to drive the blades that cut the hay or to power the conveyor system that moves the cut hay into windrows.
These are just a few of the many applications where the S77 agricultural roller chain can be used. The S77 chain is a versatile and durable chain that is designed to withstand the harsh conditions of agricultural use.
Agricultural Roller Chain Sprockets for Agricultural Roller Chain:
Agricultural roller chain sprockets and agricultural roller chains are two components that work together to transmit power between different parts of agricultural machinery.
Agricultural roller chain sprockets are toothed wheels that mesh with the links of an agricultural roller chain. The sprockets are typically made from steel or another durable material and are designed to fit with a specific size and pitch of roller chain. The teeth on the sprocket engage with the rollers on the chain, transmitting power from one part of the machinery to another.
The agricultural roller chain is a series of interlocking links that are designed to transmit power between different parts of agricultural machinery. The links of the chain are typically made from steel and are connected by pins and bushings. The chain is designed to be flexible, allowing it to move around sprockets and other components as it transmits power.
Together, agricultural roller chain sprockets and agricultural roller chains form an essential part of many types of agricultural equipment. By transmitting power smoothly and efficiently, these components help to ensure that machinery operates reliably and effectively in the challenging conditions often found in agricultural settings.
