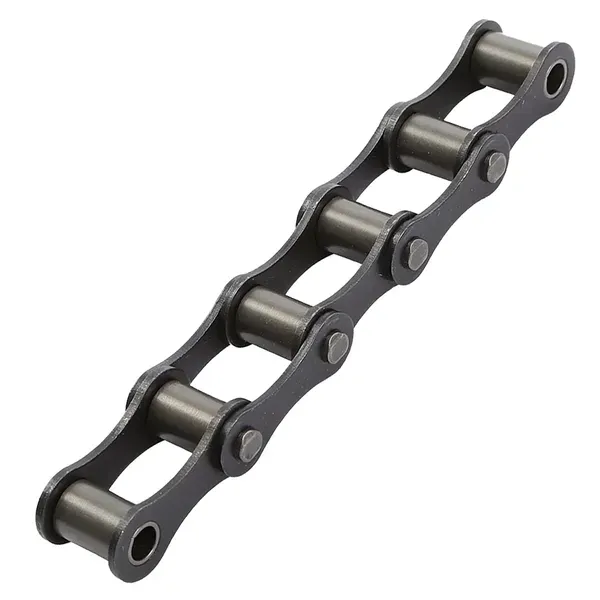

A620 Agricultural Roller Chain
As one of the roller chain manufacturers, suppliers, and exporters of mechanical products, We offer roller chains and many other products.
Please get in touch with us for details.
Roller Chain
The A620 agricultural roller chain is a type of roller chain that is commonly used in agricultural machinery and equipment. Roller chains are mechanical components that transmit power between two rotating shafts, and they are made up of a series of interconnected rollers and links.
The A620 agricultural roller chain is a heavy-duty chain that is designed to handle high loads and withstand harsh operating conditions, such as exposure to dirt, moisture, and other contaminants. It is typically used in agricultural equipment such as combines, balers, and other machinery that require reliable power transmission.
The A620 chain is part of the ANSI (American National Standards Institute) standard for agricultural roller chains, which specifies the dimensions and other characteristics of the chain. This helps ensure compatibility between different brands and models of equipment and makes it easier for manufacturers and suppliers to produce and source replacement parts.

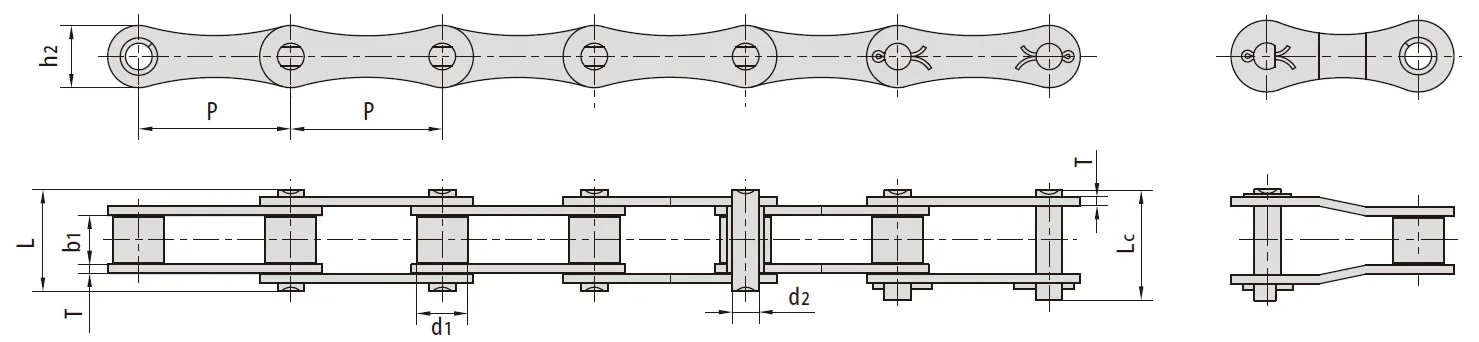

A620 Chain (Agricultural Chain) Dimensions:
| Chain No: | A620 Chain |
| Pitch (P): | 42.01 mm |
| Roller diameter (d1): | 17.91 mm |
| Width between inner plates(b1 ): | 24.51 mm |
| Pin diameter (d2 ): | 7.19 mm |
| Pin length (L): | 41.8 mm |
| Pin length (Lc ): | 45.2 mm |
| Plate dimension (h2 ): | 20.2 mm |
| Plate dimension (T): | 3.25 mm |
| Ultimate tensile strength(Q): | 39.10/8886 kN/lbf |
A620 Roller Chain Specifications:
1. Chain material: Alloy steel or Stainless steel
2. Surface treatment: Shot peening / Zinc-Plated / Nickel-Plated / Dacromet-Plated
3. Application: This product is widely used in the combine harvester, rice harvester, and other agricultural machinery.
| Product name | A620 Roller Chain |
| Materials Available | 1. Stainless Steel: SS304, SS316, etc |
| 2. Alloy Steel: 45Mn, 42CrMo, 20CrMo, etc | |
| 3. OEM, according to your request | |
| Surface Treatment | Shot peening, Blackening, Oxygenation, Polishing, Zinc-plated, Nickel-plated, Anodized, etc. |
| Characteristic | Fire Resistant, Oil Resistant, Heat Resistant |
| Design criterion | ISO DIN ANSI & Customer's Drawing |
| Size | Customer's Drawing & ISO Standard |
| Application | Corn harvester machine |
| Package | Wooden Case / Container and pallet, or made-to-order |
| Certificate | ISO9001: 2008 |
| Advantage | First quality, Best service, Competitive price, Fast delivery |
| Delivery Time | 20 days for samples. Forty-five days for official order. |
Benefits of Using the A620 Agricultural Roller Chain:
The A620 agricultural roller chain is a type of chain that is specifically designed for use in agricultural machinery and equipment. It offers several benefits over other types of chains, including:
1. Strength and durability: The A620 chain is made from high-quality materials that provide exceptional strength and durability. This means that it can withstand the heavy loads and harsh operating conditions that are common in agricultural applications.
2. Wear resistance: The A620 chain is designed to resist wear and elongation, even when used under heavy loads and in dusty environments. This helps to ensure a longer service life and reduces the need for frequent maintenance.
3. Corrosion resistance: Agricultural machinery is often exposed to moisture and other corrosive elements, which can lead to rust and other forms of corrosion. The A620 chain is designed to resist corrosion, which helps to prolong its service life and reduce the need for replacement.
4. Easy installation: The A620 chain is designed to be easy to install, which can help to reduce downtime and increase productivity. It is also available in a range of sizes and configurations, making it suitable for use in a wide range of agricultural machinery and equipment.
5. Economical: Despite its high quality and durability, the A620 chain is relatively affordable compared to other types of chains. This makes it an excellent choice for farmers and other agricultural professionals who need reliable, high-quality chains at an affordable price.
Applications of A620 Agricultural Roller Chain:
The A620 agricultural roller chain is a versatile chain that can be used in a variety of agricultural applications. Some common applications of the A620 chain include:
(1) Combine harvesters: The A620 chain is commonly used in combine harvesters to drive the harvesting components, such as the reel and cutter bar. Its strength and durability make it ideal for withstanding the heavy loads and harsh operating conditions that are common in these machines.
(2) Tractors: The A620 chain is also used in tractors to drive power take-off (PTO) and other components. Its wear and corrosion resistance make it ideal for use in dusty and moist environments.
(3) Balers: The A620 chain is commonly used in balers to drive the baling components, such as the pickup, feeder, and plunger. Its strength and durability make it ideal for withstanding the high loads and repetitive motion that are common in these machines.
(4) Spreaders: The A620 chain is also used in manure spreaders and other types of spreaders to drive the spreading components. Its wear and corrosion resistance make it ideal for use in these machines, which are often exposed to corrosive materials.
(5) Other agricultural machinery: The A620 chain can also be used in a variety of other agricultural machinery and equipment, such as grain augers, silage blowers, and hay tedders. Its versatility and durability make it an ideal choice for a wide range of applications.
Overall, the A620 agricultural roller chain is a versatile chain that can be used in a variety of agricultural applications. Its strength, durability, and wear resistance make it an ideal choice for withstanding the heavy loads and harsh operating conditions that are common in agricultural machinery and equipment.
A620 Agricultural Roller Chain Vs A550 Agricultural Roller Chain
The A620 agricultural roller chain and the A550 agricultural roller chain are both designed for use in agricultural machinery and equipment. While they share some similarities, there are also some key differences between the two chains.
Strength and durability: Both the A620 chains and A550 chains are made from high-quality materials, but the A620 chain is generally considered to be stronger and more durable than the A550 chain. This makes it better suited for use in heavy-duty applications where high loads and harsh operating conditions are common.
Wear resistance: Both the A620 chains and A550 chains are designed to resist wear, but the A620 chain is generally considered to be more wear-resistant than the A550 chain. This is due to its use of higher-quality materials and more advanced manufacturing processes.
Corrosion resistance: Both the A620 chains and A550 chains are designed to resist corrosion, but the A620 chain is generally considered to be more corrosion-resistant than the A550 chain. This is due to its use of specialized coatings and treatments that help to protect it from moisture and other corrosive elements.
Price: The A550 chain is generally less expensive than the A620 chain, which makes it a popular choice for those who are looking for a more economical option. However, the higher price of the A620 chain is often justified by its superior strength, durability, and wear resistance.
Overall, both the A620 agricultural roller chains and A550 agricultural roller chains are excellent choices for use in agricultural machinery and equipment. The choice between the two will depend on the specific application and the level of performance and durability required. The A620 chain is generally recommended for heavy-duty applications, while the A550 chain is a good choice for less demanding applications where cost is a consideration.
A620 Roller Chain Sprockets and A620 Roller Chain:
A620 roller chain is commonly known as an A620 agricultural roller chain and is manufactured using hardened steel parts to close tolerances. This A620 roller chain is durable, high quality, high strength, and has a long working life.
A620 roller chain sprockets are designed to work with the A620 roller chain and are available in a variety of sizes and materials. They are typically made of cast iron or steel and can be either riveted or cottered.
The use of A620 roller chains and sprockets allows for efficient power transmission between two or more components. The rollers in the chain help to reduce friction and wear, and the sprockets provide a secure mounting point for the chain.
Here are some of the benefits of using A620 roller chain sprockets and A620 roller chain:
- Durability: A620 roller chain is made of hardened steel and is designed to withstand a lot of wear and tear.
- High strength: A620 roller chain can handle a lot of weight and force.
- Long working life: A620 roller chain is designed to last for many years.
- Efficient power transmission: A620 rollers and sprockets allow for efficient power transmission between two or more components.
If you are looking for a durable, high-strength, and long-lasting roller chain and sprocket system, then A620 roller chain sprockets and A620 roller chain are great options.
China Agricultural Roller Chain Suppliers
We specialize in chains made to customers’ drawings and specifications. Our advantage is reliable quality, competitive price, prompt delivery, and good service. Standard products include various transmission and conveyor chains, like roller chains, double pitch conveyor chains, hollow pin chains, leaf chains, flat top chains, side bow chains, lumber conveyor chains, 81X conveyor chains, agricultural chains, CA550 roller chains, S55 roller chains, silent chains, X458 conveyor chains, grip chains (film gripper chains), PIV chains, stainless steel chains, nickel/ zinc plated chain, slient chain, engineering chain, steel pintle chain, welded steel chain, drop forged chain, malleable iron chain, and many other types. We also provide different kinds of attachments and sprockets.
We are one of the best roller chain manufacturers. We have exported our products to clients around the world and earned a good reputation because of our superior product quality and after-sales service. We warmly welcome customers both at home and abroad to contact us to negotiate business, exchange information, and cooperate with us!
