A550 Agricultural Roller Chain
As one of the roller chain manufacturers, suppliers, and exporters of mechanical products, We offer roller chains and many other products.
Please get in touch with us for details.
Roller Chain
A550 roller chain is commonly known as an A550 agricultural roller chain and is manufactured using hardened steel parts to close tolerances. This A550 roller chain is durable, high quality, high strength, and has a long working life. A550 agricultural roller chain is found in a wide range of applications, including agriculture, conveyors, corn gathering, elevator feed stations, feeder houses, forage harvesters, baggers, grain handling, manure spreaders, and more. We offer a full line of A550 roller chain attachments that can be assembled onto the chain in any configuration needed. We also offer full-line A550 roller chain sprockets and can supply them with almost any hub, bore, or tooth configuration needed.

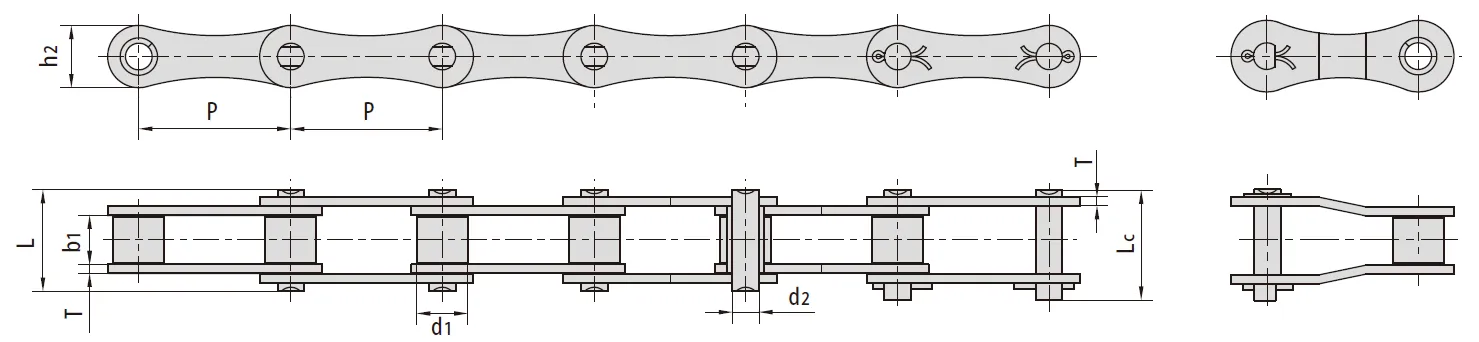

A550 Chain (Agricultural Chain) Dimensions:
| Chain No: | A550 Chain |
| Pitch (P): |
41.40 mm
|
| Roller diameter (d1): | 16.87 mm |
| Width between inner plates(b1 ): | 19.81 mm |
| Pin diameter (d2 ): | 7.19 mm |
| Pin length (L): | 35.0 mm |
| Pin length (Lc ): | 38.0 mm |
| Plate dimension (h2 ): | 19.3 mm |
| Plate dimension (T): | 2.80 mm |
| Ultimate tensile strength(Q): | 39.10/8886 |
A550 Roller Chain Specifications:
1. Chain material: Alloy steel or Stainless steel
2. Surface treatment: Shot peening / Zinc-Plated / Nickel-Plated / Dacromet-Plated
3. Application: This product is widely used in the combine harvester, rice harvester, and other agricultural machinery.
| Product name | A550 Roller Chain |
| Materials Available | 1. Stainless Steel: SS304, SS316, etc |
| 2. Alloy Steel: 45Mn, 42CrMo, 20CrMo, etc | |
| 3. OEM, according to your request | |
| Surface Treatment | Shot peening, Blackening, Oxygenation, Polishing, Zinc-plated, Nickel-plated, Anodized, etc. |
| Characteristic | Fire Resistant, Oil Resistant, Heat Resistant |
| Design criterion | ISO DIN ANSI & Customer's Drawing |
| Size | Customer's Drawing & ISO Standard |
| Application | Corn harvester machine |
| Package | Wooden Case / Container and pallet, or made-to-order |
| Certificate | ISO9001: 2008 |
| Advantage | First quality, Best service, Competitive price, Fast delivery |
| Delivery Time | 20 days for samples. Forty-five days for official order. |
Advantages of A550 Agricultural Roller Chain:
A550 agricultural roller chain is a high-quality, high-strength chain that is used in a variety of agricultural applications. It is made of hardened steel parts and is manufactured to close tolerances. This makes it a durable and reliable chain that can withstand the harsh conditions of agricultural use.
Here are some of the advantages of the A550 agricultural roller chain:
1. High strength: A550 agricultural roller chain is made of hardened steel parts, which gives it a high tensile strength. This means that it can withstand high loads without breaking or bending.
2. Durability: A550 agricultural roller chain is designed to withstand the harsh conditions of agricultural use. It is resistant to wear and tear, and it can withstand exposure to dirt, dust, and moisture.
3. Long life: A550 agricultural roller chain is designed to have a long service life. With proper maintenance, it can last for many years.
4. Low noise: A550 agricultural roller chain is designed to be low-noise. This makes it ideal for use in applications where noise is a concern, such as in livestock barns or feed mills.
5. Wide range of applications: A550 agricultural roller chain can be used in a wide range of agricultural applications. It is commonly used in conveyors, corn-gathering equipment, feed mills, and manure spreaders.
Overall, the A550 agricultural roller chain is a high-quality, high-strength chain that is ideal for use in a variety of agricultural applications. It is durable, reliable, and long-lasting, and it can withstand the harsh conditions of agricultural use.

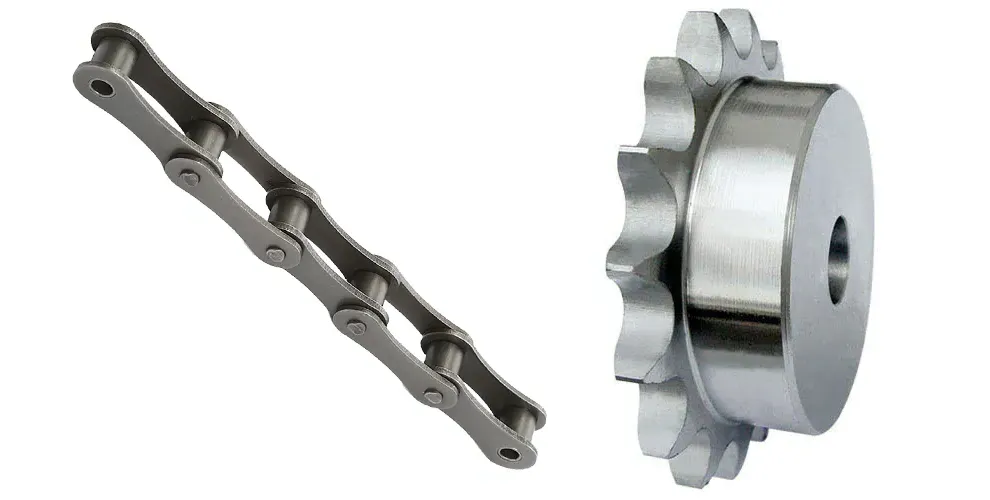

A550 Roller Chain Accessories:
A550 Roller Chain Sprockets for A550 Roller Chain:
A550 roller chain sprockets and A550 roller chains are two components that work together to provide power transmission in various industrial applications.
A550 roller chain sprockets are toothed wheels that mesh with the rollers on an A550 roller chain. The sprockets come in a range of sizes and tooth configurations to match the size and pitch of the chain. The teeth on the sprocket engage with the rollers on the chain, allowing the chain to transfer power from one sprocket to another. A550 roller chain sprockets are typically made of steel or cast iron and are designed to be durable and wear-resistant.
A550 roller chain is a type of roller chain that is commonly used in various industrial applications, including conveyors, agricultural equipment, and manufacturing machinery. It is made up of a series of interconnected links, each consisting of two inner plates, two outer plates, two rollers, and two pins. The rollers rotate on the pins, allowing the chain to smoothly transfer power from one sprocket to another. The A550 roller chain is known for its strength, durability, and ability to handle high loads.
Together, A550 roller chain sprockets and A550 roller chain form a reliable and efficient power transmission system for industrial machinery. The sprockets and chain work together to transfer power from the engine or motor to the various components of the equipment, allowing it to perform the necessary tasks. It is important to regularly inspect and maintain both the sprockets and chain to ensure that they are functioning properly and to prevent premature wear or failure.
China Agricultural Roller Chain Suppliers
We specialize in chains made to customers’ drawings and specifications. Our advantage is reliable quality, competitive price, prompt delivery, and good service. Standard products include various transmission and conveyor chains, like roller chains, double pitch conveyor chains, hollow pin chains, leaf chains, flat top chains, side bow chains, lumber conveyor chains, 81X chains, agricultural chains, CA550 roller chains, S55 roller chains, silent chains, X458 conveyor chains, PIV chains, stainless steel chains, nickel/ zinc plated chain, slient chain, engineering chain, steel pintle chain, welded steel chain, drop forged chain, malleable iron chain, and many other types. Different kinds of attachments are available.
We are one of the best roller chain manufacturers. We have exported our products to clients around the world and earned a good reputation because of our superior product quality and after-sales service. We warmly welcome customers both at home and abroad to contact us to negotiate business, exchange information, and cooperate with us!
