A555 Agricultural Roller Chain
As one of the roller chain manufacturers, suppliers, and exporters of mechanical products, We offer roller chains and many other products.
Please get in touch with us for details.
Roller Chain

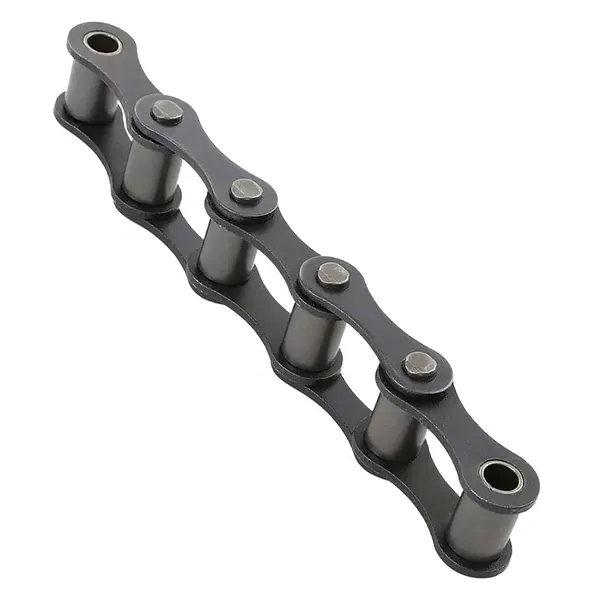

The A555 agricultural roller chain is a type of roller chain that is commonly used in agricultural applications. It is made of hardened steel parts to close tolerances, which makes it durable, high quality, and high strength. The A555 agricultural roller chain has a long working life and is found in a wide range of applications, including agriculture, conveyors, corn gathering, elevator feed stations, feeder houses, forage harvesters, baggers, grain handling, manure spreaders, and more. The A555 roller chain is available in a variety of sizes and lengths and can be customized to meet the specific needs of your application. It is also available with a variety of attachments, such as offset links, master links, and connecting links.

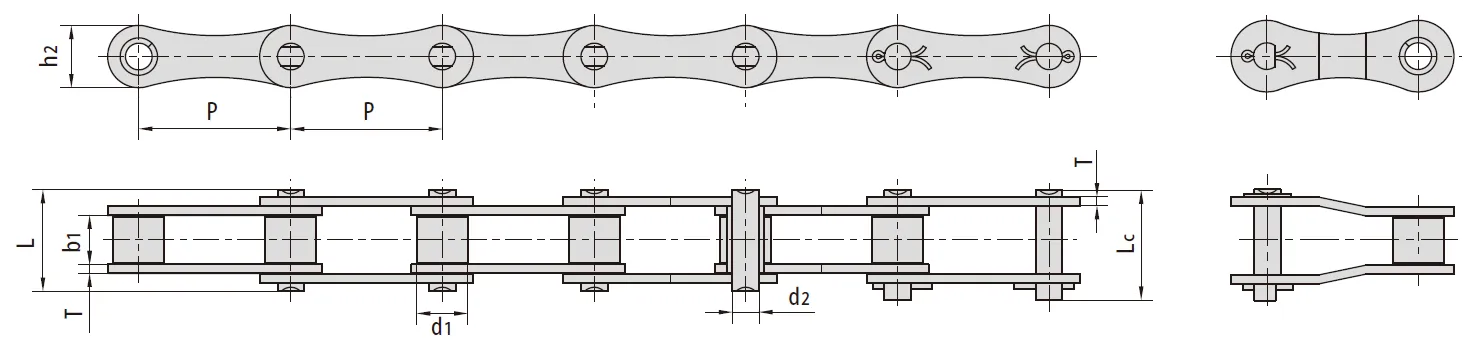

A555 Chain (Agricultural Chain) Dimensions:
Chain No: | A555 Chain |
Pitch (P): | 41.40 mm |
Roller diameter (d1): | 16.87 mm |
Width between inner plates(b1 ): | 12.70 mm |
Pin diameter (d2 ): | 7.19 mm |
Pin length (L): | 29.1 mm |
Pin length (Lc ): | 32.0 mm |
Plate dimension (h2 ): | 19.3 mm |
Plate dimension (T): | 3.10 mm |
Ultimate tensile strength(Q): | 39.10/8886 kN/lbf |
A555 Roller Chain Specifications:
1. Chain material: Alloy steel or Stainless steel
2. Surface treatment: Shot peening / Zinc-Plated / Nickel-Plated / Dacromet-Plated
3. Application: This product is widely used in the combine harvester, rice harvester, and other agricultural machinery.
Product name | A555 Roller Chain |
Materials Available | 1. Stainless Steel: SS304, SS316, etc |
2. Alloy Steel: 45Mn, 42CrMo, 20CrMo, etc | |
3. OEM, according to your request | |
Surface Treatment | Shot peening, Blackening, Oxygenation, Polishing, Zinc-plated, Nickel-plated, Anodized, etc. |
Characteristic | Fire Resistant, Oil Resistant, Heat Resistant |
Design criterion | ISO DIN ANSI & Customer's Drawing |
Size | Customer's Drawing & ISO Standard |
Application | Corn harvester machine |
Package | Wooden Case / Container and pallet, or made-to-order |
Certificate | ISO9001: 2008 |
Advantage | First quality, Best service, Competitive price, Fast delivery |
Delivery Time | 20 days for samples. Forty-five days for official order. |
Benefits of Using the A555 Agricultural Roller Chain:
The A555 agricultural roller chain is a high-quality, durable, and long-lasting chain that is used in a wide range of agricultural applications. Some of the benefits of using the A555 agricultural roller chain include the following:
1. High strength: A555 agricultural roller chain is made of hardened steel parts to close tolerances, which gives it a high tensile strength of 11,250 pounds. This makes it ideal for use in applications where high power transmission is required, such as combine harvesters and forage harvesters.
2. Long service life: A555 agricultural roller chain is designed to withstand the harsh conditions of agricultural use. The rollers are made of wear-resistant materials, and the chain is lubricated to reduce friction and wear. This gives the chain a long service life, even in demanding applications.
3. Flexibility: A555 agricultural roller chain is flexible, which allows it to conform to the movements of agricultural machinery. This helps to prevent the chain from breaking or coming off the sprockets, which can cause damage to the machinery.
4. Easy to maintain: A555 agricultural roller chain is relatively easy to maintain. The chain can be cleaned and lubricated regularly to keep it in good condition. This helps to extend the service life of the chain and prevent premature wear.
Overall, A555 agricultural roller chain is a high-quality, durable, and long-lasting chain that is ideal for use in a wide range of agricultural applications. The benefits of using this chain include high strength, long service life, flexibility, and ease of maintenance.
A555 Roller Chain Accessories:
A555 Agricultural Roller Chain Common Applications:
The A555 agricultural roller chain is a common type of chain used in a wide range of agricultural applications. Some of the most common applications for the A555 agricultural roller chain include the following:
- Combine harvesters: Combine harvesters use A555 agricultural roller chain to transmit power from the engine to the threshing and separating mechanisms.
- Forage harvesters: Forage harvesters use A555 agricultural roller chain to transmit power from the engine to the chopping and conveying mechanisms.
- Grain handling equipment: Grain handling equipment, such as elevators and conveyors, use A555 agricultural roller chain to transmit power from the drive motors to the conveying mechanisms.
- Manure spreaders: Manure spreaders use A555 agricultural roller chain to transmit power from the engine to the spreading mechanism.
- Other agricultural machinery: A555 agricultural roller chain is also used in other agricultural machineries, such as balers, baler wrappers, and blowers.
The A555 agricultural roller chain is a versatile chain that can be used in a wide range of agricultural applications. The chain is strong, durable, and long-lasting, making it a good choice for demanding agricultural applications.

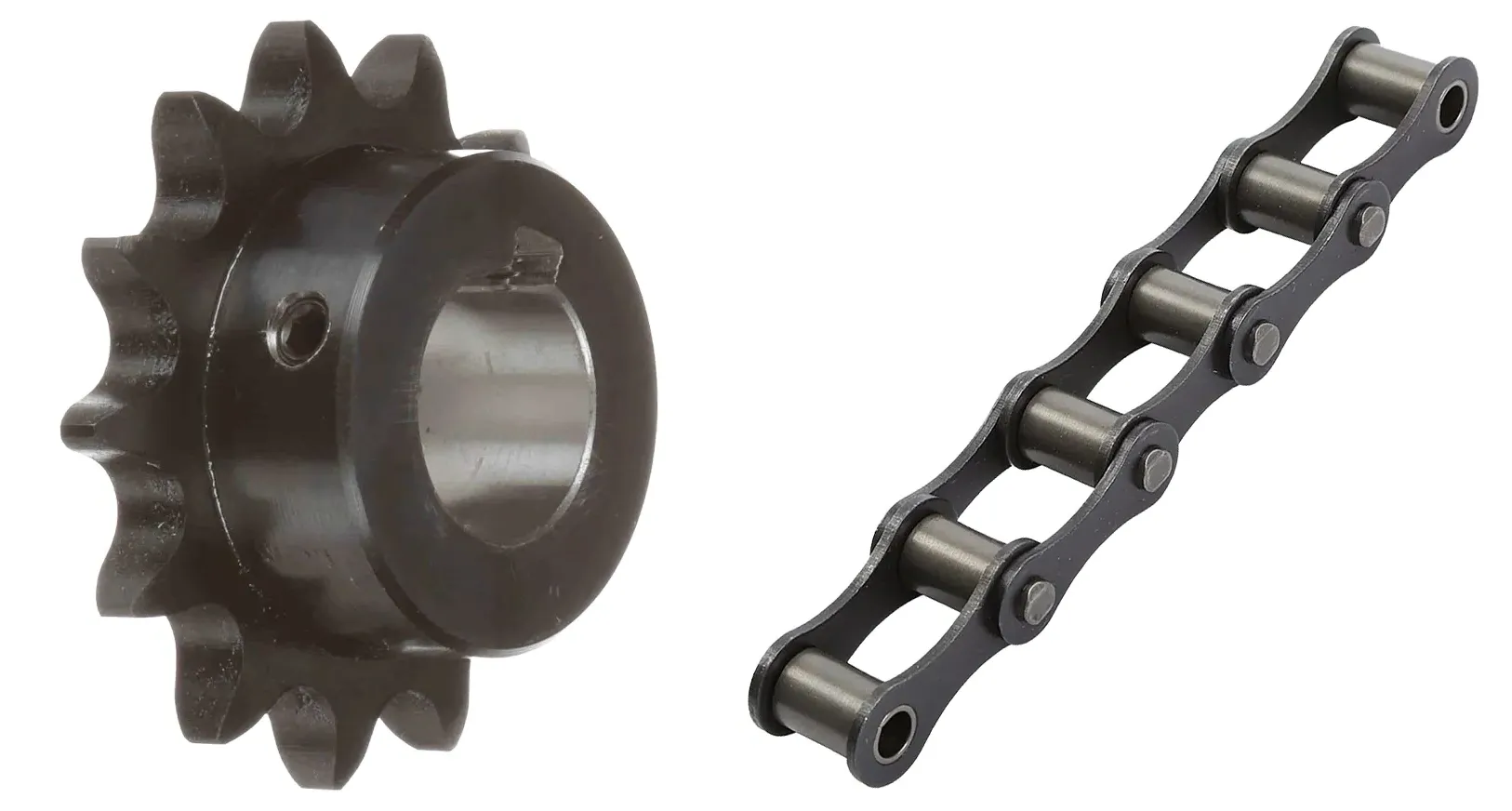

A555 Roller Chain Sprockets and A555 Roller Chain:
A555 roller chain and A555 roller chain sprockets are used in a wide range of agricultural applications, including conveyors, corn gathering, elevator feed stations, feeder houses, forage harvesters, baggers, grain handling, manure spreaders, and more.
A555 roller chain is a high-quality, high-strength chain that is made of hardened steel parts. It is durable and has a long working life. A555 roller chain sprockets are designed to work with the A555 roller chain and are made of the same high-quality materials.
The two components work together to transmit power and motion in agricultural machinery. The chain connects the sprockets, which are attached to the shafts of the machinery. As the chain moves, it turns the sprockets, which in turn turn the shafts. This movement is what powers the machinery.
A555 roller chain and A555 roller chain sprockets are an important part of many agricultural machines. They are reliable and durable, and they can help to keep your machinery running smoothly for many years.
Here are some of the benefits of using A555 roller chain and A555 roller chain sprockets:
- Durability: A555 roller chain and A555 roller chain sprockets are made of high-quality materials that can withstand the harsh conditions found in agricultural settings.
- Strength: A555 roller chain and A555 roller chain sprockets are strong enough to transmit power and motion in even the most demanding applications.
- Efficiency: A555 roller chain and A555 roller chain sprockets are efficient in transferring power, which can help to save energy.
- Long lifespan: A555 roller chain and A555 roller chain sprockets can last for many years with proper maintenance.
If you are looking for a reliable and durable way to transmit power and motion in your agricultural machinery, then the A555 roller chain and A555 roller chain sprockets are a great option.
