S62 Agricultural Roller Chain

As one of the roller chain manufacturers, suppliers, and exporters of mechanical products, We offer roller chains and many other products.

Please get in touch with us for details.

Mail:[email protected]

Roller Chain

The S62 agricultural roller chain is a type of roller chain commonly used in agricultural equipment. The S62 chain is manufactured to DIN8189 standards, which ensures that it meets high quality and performance requirements. The chain is also heat treated, which makes it more resistant to wear and tear. The "S" in S62 stands for "standard series," which means that the S62 chain has a standard pitch of 41.91 mm and a standard roller diameter of 019.05 mm. The number "62" refers to the number of pitches in the chain.

S62 agricultural roller chains are designed to withstand harsh environments and heavy loads, making them ideal for use in equipment such as combines, balers, and other farm machinery. They are typically made of high-quality steel and are designed to be durable and long-lasting even under heavy use. Overall, the S62 Agricultural Roller Chain is a reliable and widely-used component in agricultural machinery that helps ensure smooth and efficient operation.

ep-roller-chain-1

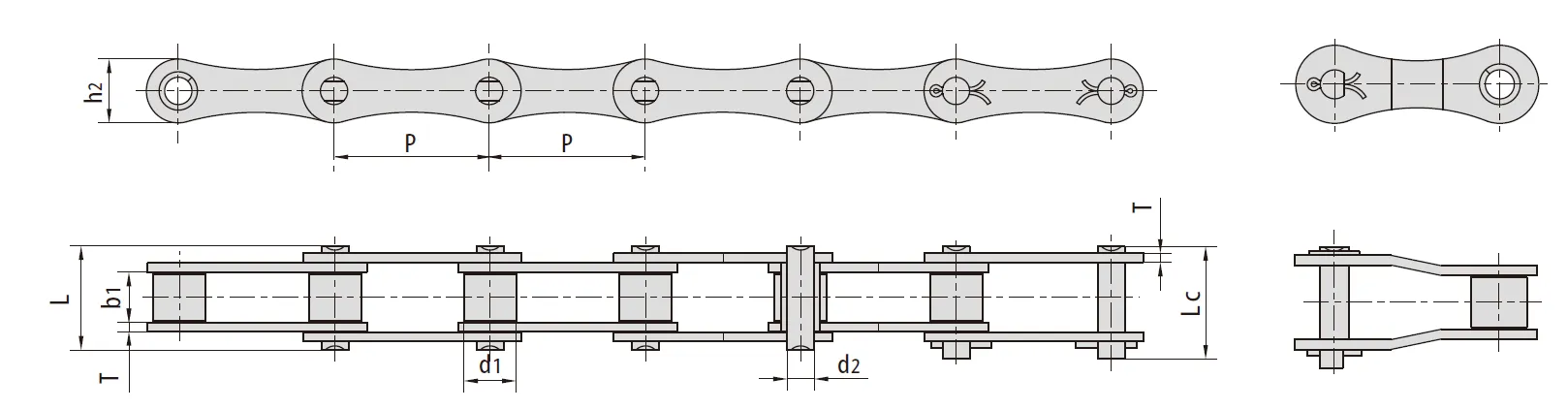

S62 Chain (Agricultural Chain) Dimensions:

ep-roller-chain-1.11webp

Chain No: S62 Chain
Pitch (P): 41.91 mm
Roller Diameter (d1): 19.05 mm
Width Between Inner Plates (b1):  26.20 mm
Pin Diameter (d2): 5.72 mm
Pin Length (L): 40.3 mm
Connecting Link Pin Length (Lc): 43.0 mm
Inner Plate Depth (h2): 17.3 mm
Plate Thickness (T): 2.5 mm
Tensile Strength:  6,744 LBS
Weight Per Meter: 4.12 LBS

S62 Agricultural Roller Chain Specifications:

1. Material: Alloy steel & Stainless steel
2. Surface treatment: Shot peening / Zinc-plated / Nickel-plated / Dacromet-plated
3. Application: These chains are widely used in the rice harvester, combine harvester, drill, and other agricultural machinery.
4. Characteristic: Chain plate hole finally passed ball extrusion to ensure maximum fatigue resistance. Parts of shot peening treatment make the chain and the sleeve have a higher fatigue strength.

Product name  S62 Agricultural Roller Chain
Materials Available  1. Stainless Steel: SS304, SS316, etc
2. Alloy Steel: 45Mn, 42CrMo, etc
3. OEM, according to your request
Surface Treatment Shot peening, Polishing, Oxygenation, Blackening, Zinc-plated, Nickel-plated, Anodized, etc.
Characteristic Fire Resistant, Oil Resistant, Heat Resistant
Design criterion ISO DIN ANSI & Customer's Drawing
Size Customer's Drawing & ISO Standard
Package Wooden Case / Container and pallet, or made-to-order
Certificate ISO9001: 2008
Advantage First quality, best service, competitive price, fast delivery
Delivery Time 20 days for samples. Forty-five days for official order.

Features of S62 Agricultural Roller Chain:

The S62 agricultural roller chain has a number of features that make it a reliable and durable choice for a variety of agricultural applications. These features include:

1. Strong and durable. The S62 agricultural roller chain is made from high-quality materials and is designed to withstand the harsh conditions of agricultural use.

2. Pitch of 41.91mm. The pitch of the chain is 41.91mm, which means that there is 41.91mm between the centers of each link. This makes the S62 agricultural roller chain ideal for use in applications where there is a need for high torque and power transmission.

3. Roller diameter of 19.05mm. The roller diameter of the chain is 19.05mm, which provides a smooth and efficient power transfer.

4. Pin diameter of 5.72mm. The pin diameter of the chain is 5.72mm, which provides the S62 agricultural roller chain with the strength and durability it needs to withstand the rigors of agricultural use.

5. Heat treated. The S62 agricultural roller chain is heat treated to improve its strength and durability. This makes the S62 chain more resistant to wear and tear and helps it to last longer.

6. Available in a variety of lengths and sizes. The S62 agricultural roller chain is available in a variety of lengths and sizes, so you can find the perfect one for your needs.

If you are looking for a strong, durable, and reliable agricultural roller chain, the S62 agricultural roller chain is a great option. It is designed to withstand the harsh conditions of agricultural use and is available in a variety of lengths and sizes to meet your needs.

S62 Agricultural Roller Chain Vs S52 Agricultural Roller Chain:

The S62 and S52 agricultural roller chains are both designed for use in agricultural equipment. However, there are some key differences between the two chains.

  • Pitch. The S62 chain has a pitch of 6.25 mm, while the S52 chain has a pitch of 5.25 mm. This means that the S62 chain has larger rollers and link plates, which makes it more durable and can handle heavier loads.
  • Strength. The S62 chain has a tensile strength of 1380 MPa, while the S52 chain has a tensile strength of 1275 MPa. This means that the S62 chain is stronger and can withstand more stress.
  • Weight. The S62 chain is slightly heavier than the S52 chain. This is due to the larger rollers and link plates.
  • Price. The S62 chain is more expensive than the S52 chain. This is due to the higher quality materials and construction.

In general, the S62 chain is a better choice for applications where durability and strength are important, such as in tractors and harvesters. The S52 chain is a better choice for applications where weight and cost are more important, such as in smaller agricultural equipment.

ep-roller-chain-1.12webp

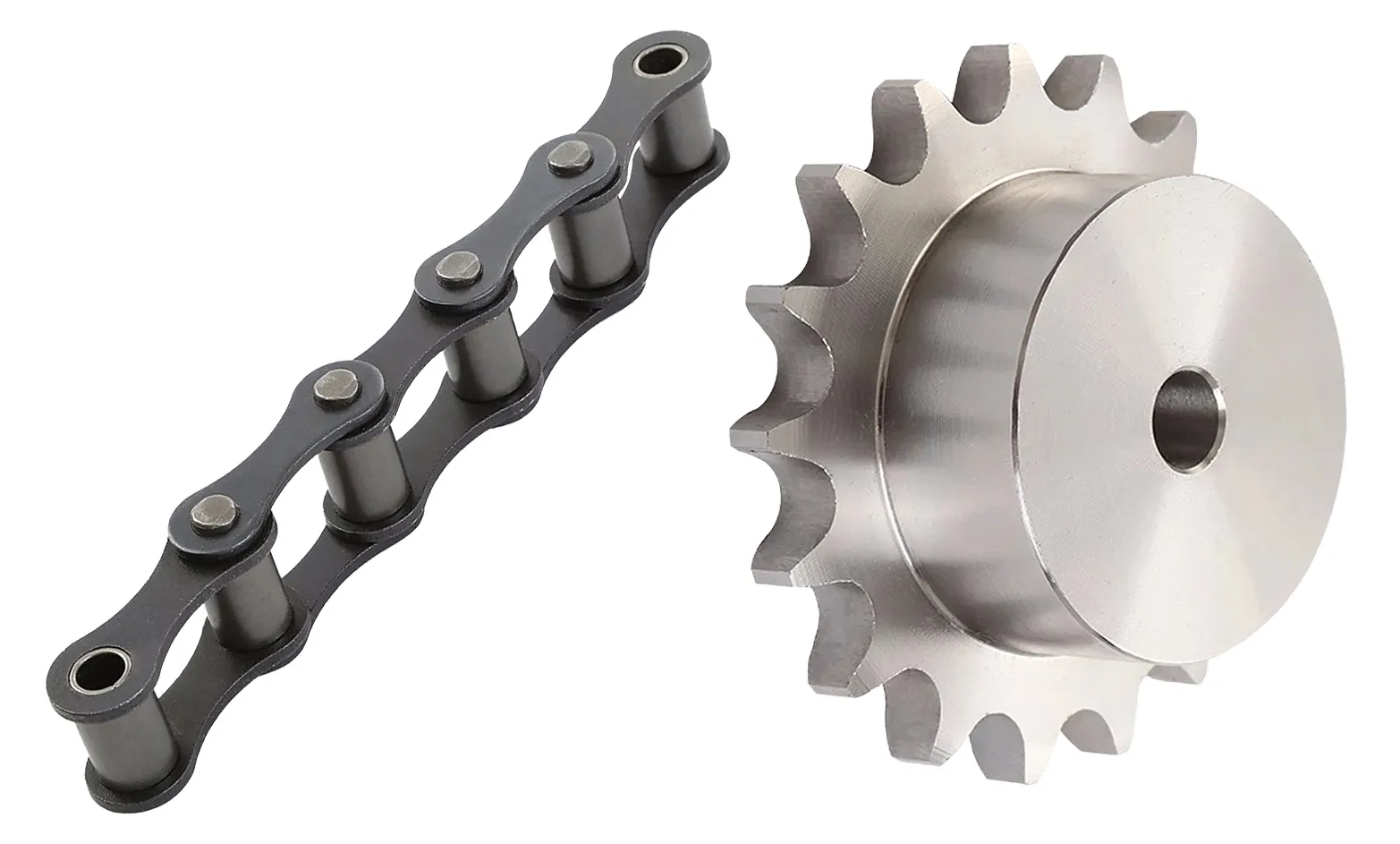

Agricultural Chain Sprockets and Agricultural Chains:

Agricultural chain sprockets and agricultural chains are important components in many agricultural machinery. Agricultural chains are typically made from high-strength steel and are designed to withstand the harsh conditions of farming environments. They are used to transmit power from the engine or motor to the wheels, blades, or other components of agricultural machinery.

Agricultural chain sprockets are toothed wheels that mesh with the links of the agricultural chain. They are typically made from steel and are designed to be durable and long-lasting. The teeth of the sprocket engage with the links of the chain, transmitting power and motion from the engine or motor to the wheels or other components of the agricultural machinery.

The selection of agricultural chains and agricultural chain sprockets depends on the specific application and the requirements of the machinery. Factors such as load capacity, speed, and resistance to wear and corrosion are important considerations when selecting agricultural chains and sprockets. Proper maintenance, including lubrication and regular inspection, is also important to ensure the longevity and reliable performance of these components.

ep-roller-chain-1.13webp

China Agricultural Roller Chain Manufacturers

We specialize in chains made to customers’ drawings and specifications. Our advantage is reliable quality, competitive price, prompt delivery, and good service. Standard products include various transmission and conveyor chains, like roller chains, double pitch conveyor chains, hollow pin chains, leaf chains, flat top chains, side bow chains, lumber conveyor chains, 81X conveyor chains, agricultural chains, CA550 roller chains, S55 roller chains, silent chains, X458 conveyor chains, PIV chains, stainless steel chains, nickel/ zinc plated chain, slient chain, engineering chain, steel pintle chain, welded steel chain, drop forged chain, malleable iron chain, and many other types. Different kinds of attachments are available.

We are one of the best roller chain manufacturers. We have exported our products to clients around the world and earned a good reputation because of our superior product quality and after-sales service. We warmly welcome customers both at home and abroad to contact us to negotiate business, exchange information, and cooperate with us!
