S52 Agricultural Roller Chain

As one of the roller chain manufacturers, suppliers, and exporters of mechanical products, We offer roller chains and many other products.

Please get in touch with us for details.

Mail:[email protected]

Roller Chain

The S52 agricultural roller chain is a roller chain that is manufactured to DIN8189 standards and is primarily used in agricultural equipment. It features solid rollers, heat treated components, and is supplied with a light, high-quality lubricant for extended working life.

The S52 chain has a pitch of 38.10mm, a roller diameter of 15.24mm, a width between inner plates of 22.23mm, a pin diameter of 5.72mm, a pin length of 37.7mm, a connecting link pin length of 40.4mm, an inner plate depth of 17.3mm, and a plate thickness of 2.8mm. It has a tensile strength of 7,868 lbs and weighs 3.70 lbs per meter.

The S52 agricultural roller chain is used in a variety of agricultural applications, such as combines, harvesters, and balers. It is a durable and reliable chain that can withstand the harsh conditions of agricultural use.

ep-roller-chain-2

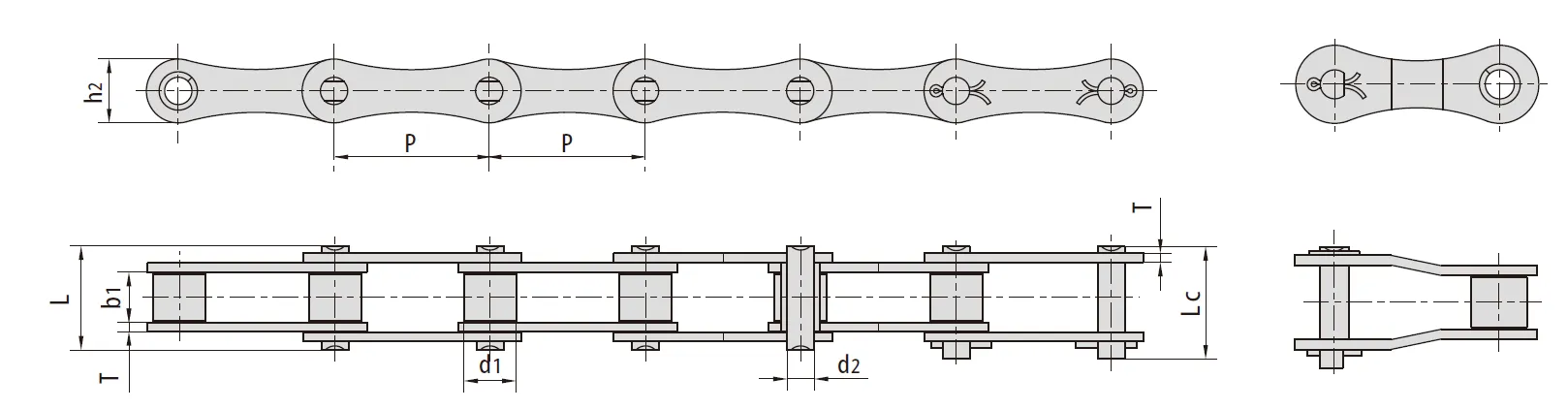

S52 Chain (Agricultural Chain) Dimensions:

ep-roller-chain-1.11webp

Chain No: S52 Chain
Pitch (P): 38.10 mm
Roller Diameter (d1): 15.24 mm
Width Between Inner Plates (b1): 22.23 mm
Pin Diameter (d2): 5.72 mm
Pin Length (L): 37.7 mm
Connecting Link Pin Length (Lc): 40.4 mm
Inner Plate Depth (h2): 17.3 mm
Plate Thickness (T): 2.8 mm
Tensile Strength: 7,868 LBS
Weight Per Meter: 3.70 LBS

S52 Agricultural Roller Chain Specifications:

1. Chain material: Alloy steel or Stainless steel
2. Surface treatment: Shot peening / Zinc-Plated / Nickel-Plated / Dacromet-Plated
3. Application: These chains are widely used in the rice harvester, combine harvester, drill, and other agricultural machinery.
4. Characteristic: The chain plate hole finally passes ball extrusion to ensure maximum fatigue resistance; parts of the shot peening treatment make the chain and the sleeve have a higher fatigue strength.

Product name  S52 Agricultural Chain
Materials Available  1. Stainless Steel: SS304, SS316, etc
2. Alloy Steel: 45Mn, 42CrMo, 20CrMo, etc
3. OEM, according to your request
Surface Treatment Shot peening, Blackening, Oxygenation, Polishing, Zinc-plated, Nickel-plated, Anodized, etc.
Characteristic Fire Resistant, Oil Resistant, Heat Resistant
Design criterion ISO DIN ANSI & Customer's Drawing
Size Customer's Drawing & ISO Standard
Application Corn harvester machine
Package Wooden Case / Container and pallet, or made-to-order
Certificate ISO9001: 2008
Advantage First quality, Best service, Competitive price, Fast delivery
Delivery Time 20 days for samples. Forty-five days for official order.

S52 Agricultural Roller Chain Advantages:

The S52 agricultural roller chain has a number of advantages over other types of chains, including:

1. Durability: The S52 agricultural roller chain is made of high-quality steel and is heat treated for strength and durability. It can withstand the harsh conditions of agricultural use, such as dirt, dust, and moisture.

2. Reliability: The S52 agricultural roller chain is a reliable and consistent performer. It is designed to provide smooth, efficient power transmission for long service life.

3. Lubrication: The S52 agricultural roller chain is supplied with a high-quality chain lube that helps to reduce friction and wear. This extends the life of the chain and helps to keep it running smoothly.

4. Versatility: The S52 agricultural roller chain is available in a variety of lengths and styles to meet the needs of different applications. It can be used in a wide range of agricultural equipment, such as conveyors, harvesters, and balers.

5. High efficiency: The S52 agricultural roller chain is highly efficient, with a power transmission efficiency of up to 98%. This means that less energy is wasted in the form of heat and friction, which can save you money on your energy bills.

6. Long life: The S52 agricultural roller chain is designed to last for many years under normal operating conditions. With proper lubrication and maintenance, it can easily last for 10,000 hours or more.

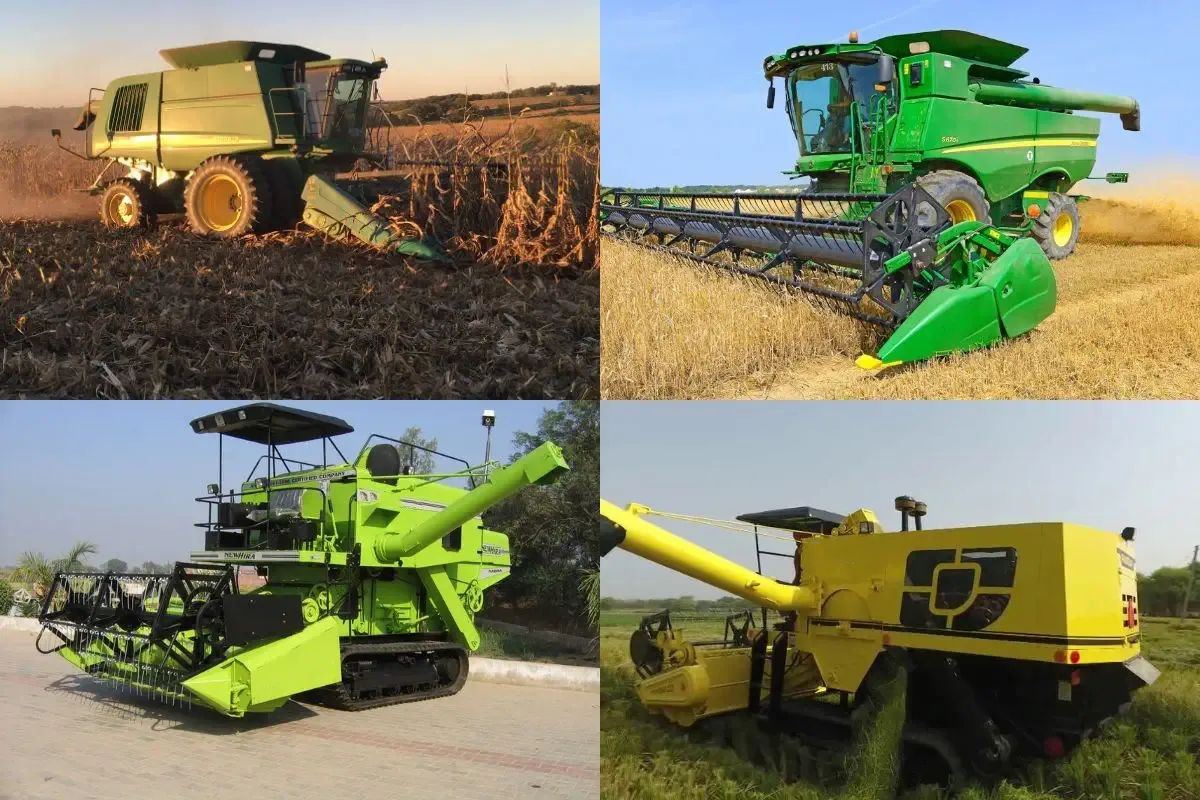

S52 Agricultural Roller Chain Applications:

The S52 agricultural roller chain is used in a variety of agricultural applications, including:

(1) Conveyors: S52 agricultural roller chains are used in conveyor systems to transport materials, such as grain, hay, and manure. They are also used in conveyor systems that are used to load and unload agricultural equipment.

(2) Harvesters: S52 agricultural roller chains are used in harvesters to power the various components of the harvester, such as the cutter head, the threshing mechanism, and the conveyor system.

(3) Balers: S52 agricultural roller chains are used in balers to bale hay, straw, and other agricultural materials. They are also used in balers that are used for baling cotton.

(4) Other agricultural equipments: S52 agricultural roller chains are also used in other agricultural equipment, such as grain elevators, grain dryers, and manure spreaders.

The S52 agricultural roller chain is a versatile and durable chain that can be used in a variety of agricultural applications. It is a reliable and efficient option for power transmission in agricultural equipment.

ep-roller-chain-2.11webp

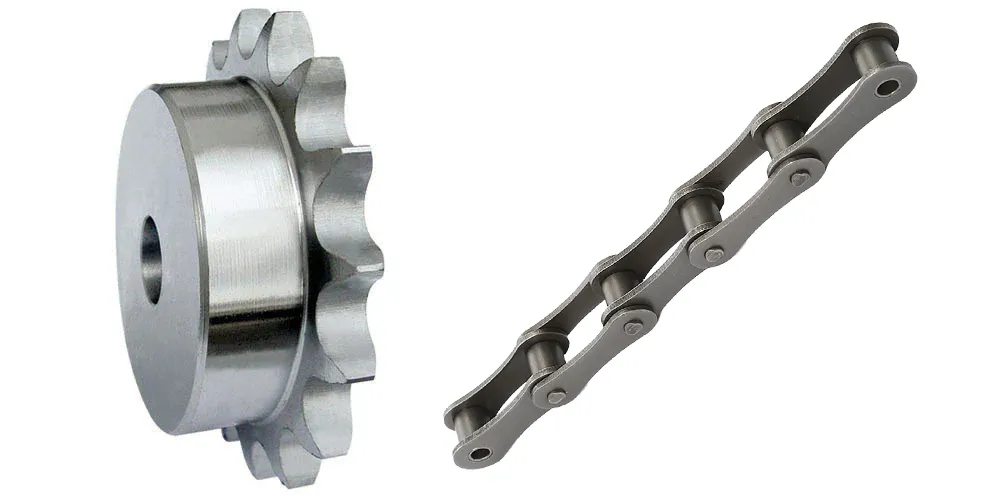

Agricultural Roller Chain Sprockets for Agricultural Roller Chain:

Agricultural roller chain sprockets are toothed wheels that work in conjunction with the agricultural roller chain to transmit power between two shafts. The agricultural chain sprockets have teeth that mesh with the chain, causing it to move and transmit power. Sprockets come in a variety of sizes and configurations to match the pitch and number of links of the roller chain. When selecting an agricultural roller chain, it is important to choose one that is compatible with the sprockets being used. The chain must have the same pitch and number of links as the sprockets in order to mesh properly and transmit power efficiently.

Agricultural roller chain sprockets come in various sizes and configurations, depending on the specific application and machinery. They are typically made of high-quality materials, such as steel or cast iron, that can withstand the harsh operating conditions of agricultural environments. Some common types of agricultural roller chain sprockets include:

Plain bore sprockets: These agricultural roller chain sprockets have a simple bore without a keyway or set screw and are typically used in light-duty applications.

Finished bore sprockets: These agricultural roller chain sprockets have a pre-drilled bore that is ready to be mounted onto a shaft. They come in various sizes and configurations and can be used in a wide range of agricultural applications.

Taper lock sprockets: These agricultural roller chain sprockets feature a tapered bore that allows them to be easily mounted and removed from a shaft using a locking device. They are commonly used in heavy-duty applications, such as in combine harvesters and other large agricultural equipment.

Double sprockets: These agricultural roller chain sprockets feature two sets of teeth that allow them to drive two separate chains simultaneously. They are commonly used in applications that require high torque or power transfer.

Overall, agricultural roller chain sprockets are a critical component of agricultural machinery that use roller chain drives. By selecting the right sprocket for the specific application and machinery, farmers and agricultural equipment manufacturers can ensure optimal performance and durability.

ep-roller-chain-2.12webp

China Agricultural Roller Chain Suppliers

We specialize in chains made to customers’ drawings and specifications. Our advantage is reliable quality, competitive price, prompt delivery, and good service. Standard products include various transmission and conveyor chains, like roller chains, double pitch conveyor chains, hollow pin chains, leaf chains, flat top chains, side bow chains, lumber conveyor chains, 81X chains, agricultural chains, CA550 roller chains, S55 roller chains, silent chains, X458 conveyor chains, PIV chains, stainless steel chains, nickel/ zinc plated chain, slient chain, engineering chain, steel pintle chain, welded steel chain, drop forged chain, malleable iron chain, and many other types. Different kinds of attachments are available.

We are one of the best roller chain manufacturers. We have exported our products to clients around the world and earned a good reputation because of our superior product quality and after-sales service. We warmly welcome customers both at home and abroad to contact us to negotiate business, exchange information, and cooperate with us!
