S51 Agricultural Roller Chain

As one of the roller chain manufacturers, suppliers, and exporters of mechanical products, We offer roller chains and many other products.

Please get in touch with us for details.

Mail:[email protected]

Roller Chain

The S51 agricultural roller chain is a heavy-duty roller chain designed for use in agricultural equipment. It is made to DIN8189 standards and features solid rollers, heat-treated components, and a light, high-quality lubricant for extended working life. The S51 chain is available in a variety of lengths and pitch sizes to suit a wide range of applications. The S51 agricultural roller chain is a versatile and reliable option for a wide range of agricultural applications. It is ideal for use in harvesters, tractors combines, and other agricultural machinery.

Here are some of the key features of the S51 agricultural roller chain:

  • Heavy-duty construction for durability
  • Solid rollers for smooth operation
  • Heat-treated components for strength and longevity
  • Light high-quality lubricant for extended working life
  • Available in a variety of lengths and pitch sizes

ep-roller-chain-9

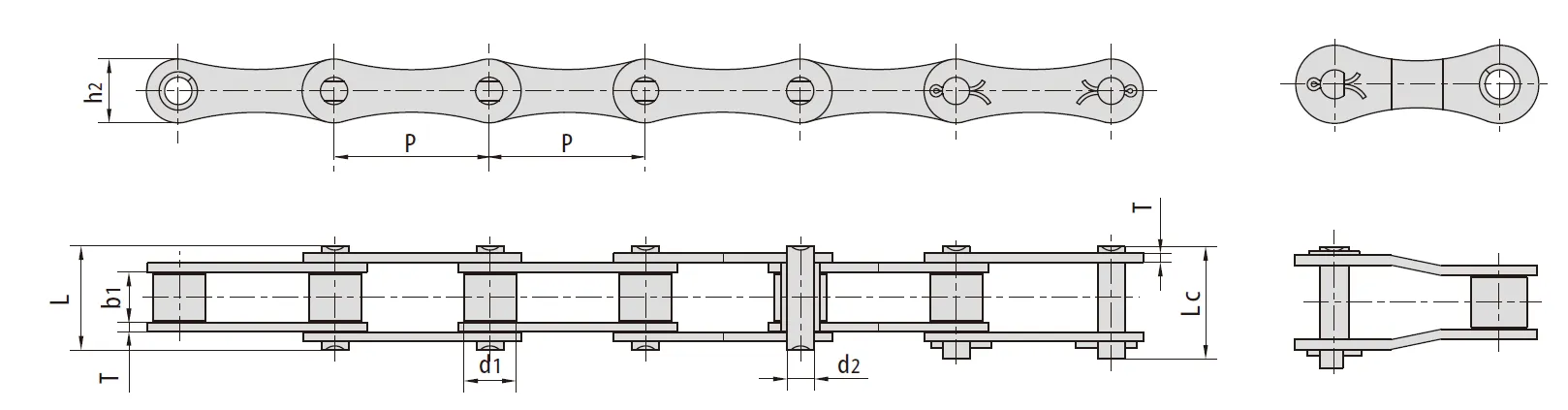

S51 Chain (Agricultural Chain) Dimensions:

ep-roller-chain-7.11webp

Chain No: S51 Chain
Pitch (P): 38.10mm
Roller Diameter (d1): 15.24mm
Width Between Inner Plates (b1): 16.00mm
Pin Diameter (d2): 5.72mm
Pin Length (L): 30.9mm
Connecting Link Pin Length (Lc): 33.8mm
Inner Plate Depth (h2): 17.3mm
Plate Thickness (T): 2.8mm
Tensile Strength: 7,868 LBS
Weight Per Meter: 3.26 LBS

S51 Agricultural Roller Chain Advantages:

The S51 agricultural roller chain has a number of advantages over other types of chains, including:

1. High tensile strength: The S51 agricultural roller chain has a tensile strength of 65,000 pounds, which makes it strong enough to handle the heavy loads and demanding conditions found in agricultural applications.

2. Smooth operation: The solid rollers on the S51 agricultural roller chain reduce friction and vibration, resulting in smooth and quiet operation.

3. Durability: The heat-treated components of the S51 agricultural roller chain make it resistant to wear and tear, extending its lifespan.

4. Lubrication: The S51 agricultural roller chain is supplied with a light, high-quality lubricant that helps to keep the chain moving smoothly and prevents rust and corrosion.

5. Versatility: The S51 agricultural roller chain is available in a variety of lengths and pitch sizes, making it a versatile option for a wide range of agricultural applications.

S51 Agricultural Roller Chain Attachments:

ep-roller-chain-9.11webp

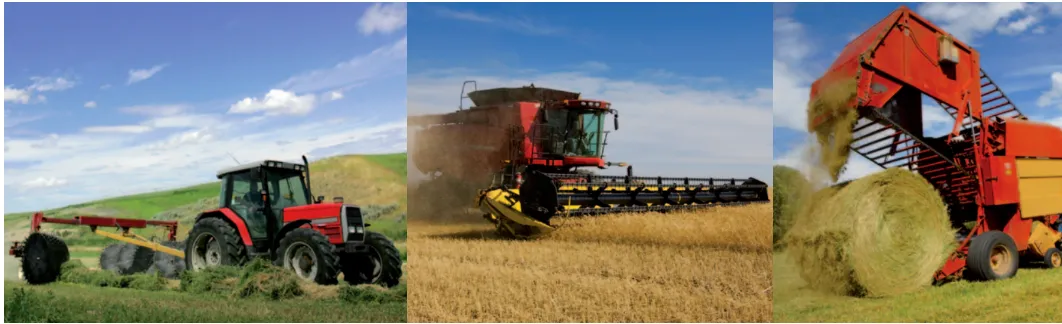

S51 Agricultural Roller Chain Application Scenarios:

S51 agricultural roller chain is a type of roller chain that is specifically designed for use in agricultural applications. It is made of high-quality materials that can withstand the harsh conditions found in agricultural settings. S51 agricultural roller chain is also designed to be easy to maintain, even in dusty or dirty environments.

Some of the specific applications of the S51 agricultural roller chain include the following:

(1) Harvesting machinery: The S51 agricultural roller chain is used in harvesting machinery to transmit power from the engine to the harvester's cutting mechanism.

(2) Tractors: The S51 agricultural roller chain is used in tractors to transmit power from the engine to the tractor's wheels.

(3) Balers: The S51 agricultural roller chain is used in balers to compress hay or straw into bales.

(4) Irrigation systems: The S51 agricultural roller chain is used in irrigation systems to transmit power from the pump to the sprinklers.

(5) Other agricultural machinery: The S51 agricultural roller chain is also used in a variety of other agricultural machinery, such as combines, planters, and sprayers.

ep-roller-chain-9.12webp

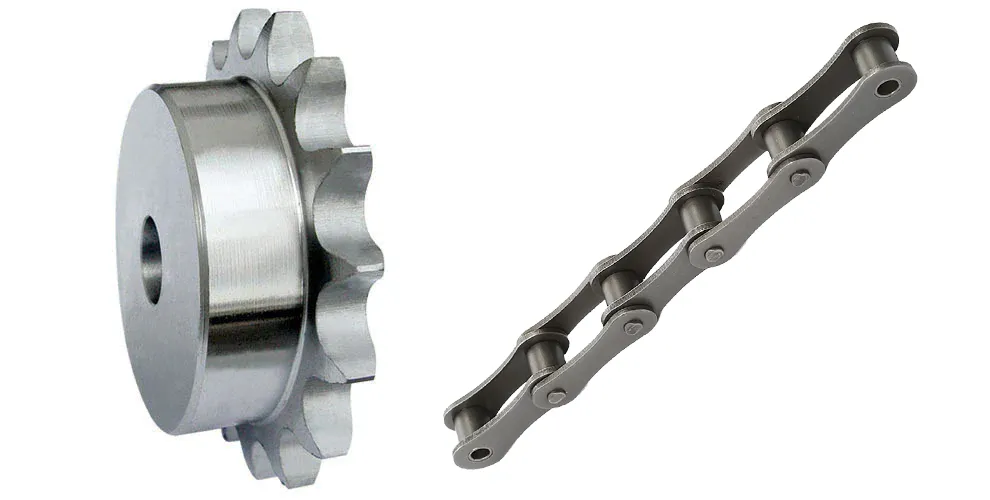

Agricultural Chain Sprockets and Agricultural Chains:

Agricultural chain sprockets and agricultural chains are important components used in various agricultural machinery and equipment. Agricultural chains are typically made from high-strength steel and are designed to transmit power and motion between various components of agricultural machinery, such as tractors, harvesters, and other equipment.

Agricultural chain sprockets are toothed wheels that are used to transmit power and motion to agricultural chains. These sprockets are typically made from high-strength steel and are designed to mesh with the teeth on the agricultural chain. As the sprocket rotates, it engages with the chain, which in turn drives other components of the machinery.

The selection of the appropriate agricultural chain and sprocket for a particular application is critical to ensure the proper operation and performance of the machinery. Factors such as the size, pitch, and number of teeth on the sprocket, as well as the type and strength of the chain, must be carefully considered.

There are various types of agricultural chains and sprockets available, including roller chains, leaf chains, and pintle chains, among others. Each type of chain has its own unique characteristics and is designed for specific applications.

Maintenance and lubrication of agricultural chains and sprockets are important to ensure they operate efficiently and have a long service life. Regular inspection, cleaning, and lubrication can help prevent wear and damage to these components, which can lead to costly repairs and downtime.

ep-roller-chain-8.12webp

China Agricultural Roller Chain Manufacturers

We specialize in chains made to customers’ drawings and specifications. Our advantage is reliable quality, competitive price, prompt delivery, and good service. Standard products include various transmission and conveyor chains, like roller chains, double pitch conveyor chains, hollow pin chains, leaf chains, flat top chains, side bow chains, lumber conveyor chains, 81X conveyor chains, agricultural chains, CA550 roller chains, S55 roller chains, silent chains, X458 conveyor chains, PIV chains, stainless steel chains, nickel/ zinc plated chain, slient chain, engineering chain, steel pintle chain, welded steel chain, drop forged chain, malleable iron chain, and many other types. Different kinds of attachments are available.

We are one of the best roller chain manufacturers. We have exported our products to clients around the world and earned a good reputation because of our superior product quality and after-sales service. We warmly welcome customers both at home and abroad to contact us to negotiate business, exchange information, and cooperate with us!
