S45 Agricultural Roller Chain

As one of the roller chain manufacturers, suppliers, and exporters of mechanical products, We offer roller chains and many other products.

Please get in touch with us for details.

Mail:[email protected]

Roller Chain

The S45 agricultural roller chain is a high-strength chain designed for use in agricultural equipment. It is made of solid rollers and heat-treated components, which make it durable and resistant to wear. The S45 chain has a simple design consisting of inner and outer plates, pins, bushings, and rollers. The rollers allow the chain to move smoothly and efficiently over sprockets, which are toothed wheels that transmit rotary motion and power to other parts of the machinery.

The S45 agricultural roller chain is known for its strength, durability, and resistance to wear and fatigue. It is designed to handle heavy loads and high speeds, making it ideal for use in agricultural applications such as combine harvesters, balers, spreaders, and other farm equipment. Overall, the S45 agricultural roller chain is an important component in many types of agricultural machinery, helping to ensure reliable and efficient operation in the field.

ep-roller-chain-10

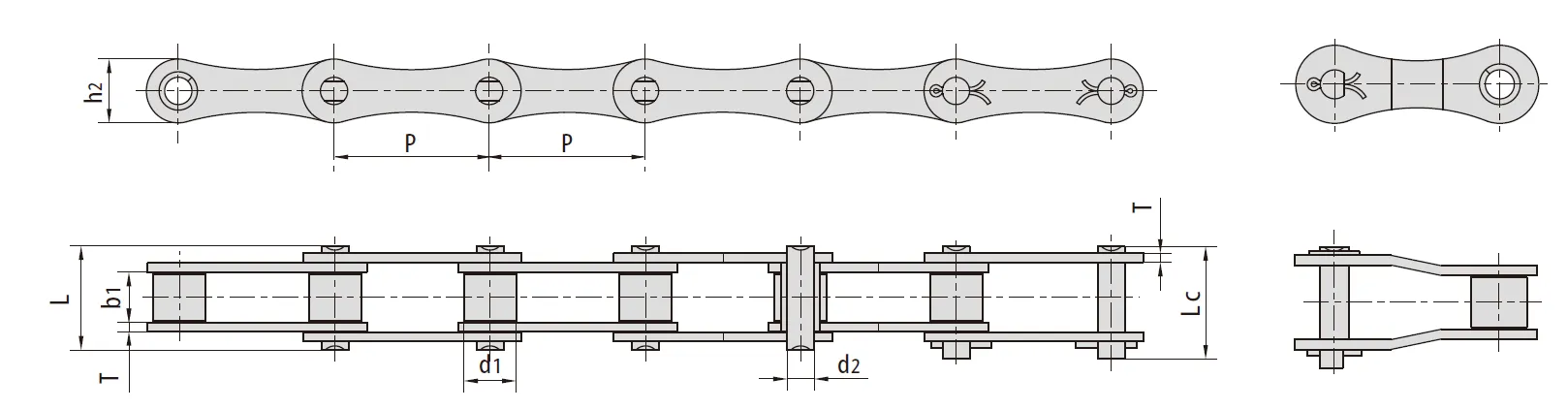

S45 Chain (Agricultural Chain) Dimensions:

ep-roller-chain-7.11webp

Chain No: S45 Chain
Pitch (P): 41.40mm
Roller Diameter (d1): 15.24mm
Width Between Inner Plates (b1): 22.23mm
Pin Diameter (d2): 5.72mm
Pin Length (L): 37.7mm
Connecting Link Pin Length (Lc): 40.4mm
Inner Plate Depth (h2):  17.3mm
Plate Thickness (T): 2.8mm
Tensile Strength: 7,868 LBS
Weight Per Meter: 3.66 LBS

Benefits of S45 Agricultural Roller Chain:

Here are the benefits of using the S45 agricultural roller chain:

1. High strength and durability: The S45 agricultural roller chain is made from medium carbon steel that has been heat treated for increased strength and durability. This makes it ideal for use in agricultural applications where the chain is subjected to high loads and rough conditions.

2. Smooth and quiet operation: The solid rollers on the S45 agricultural roller chain provide a smooth and quiet operation. This is important in agricultural applications where noise can be a nuisance.

3. Long service life: The S45 agricultural roller chain is designed to last for many years with proper maintenance. The heat treatment process helps to improve the fatigue life of the chain, and the solid rollers help to reduce wear and tear.

4. Wide range of applications: The S45 agricultural roller chain can be used in a wide range of agricultural applications, including conveyors, grain augers, and balers.

5. Compatibility with ANSI Standard: The S45 agricultural roller chain is part of the ANSI standard roller chain series, which means that it is compatible with a wide range of sprockets and other components. This makes it easier to find replacement parts and to maintain and repair agricultural machinery and equipment.

S45 Agricultural Roller Chain Vs S32 Agricultural Roller Chain:

The S45 roller chains and S32 roller chains are both agricultural chains manufactured to DIN 8189 standards. They are both solid roller chains with heat-treated components, but there are some key differences between the two chains.

The S45 chain has a larger pitch (41.40mm) than the S32 chain (29.21mm). This means that the S45 chain can transmit more power and load at a given speed. The S45 chain also has larger rollers (15.24mm) than the S32 chain (11.43mm). This makes the S45 chain more durable and less likely to wear out over time.

However, the S45 chain is also heavier than the S32 chain. This means that it requires more power to drive, and it is more difficult to install and maintain.

In general, the S45 chain is a better choice for applications that require high power transmission and durability. The S32 chain is a better choice for applications where weight and ease of installation are more important.

ep-roller-chain-10.11webp

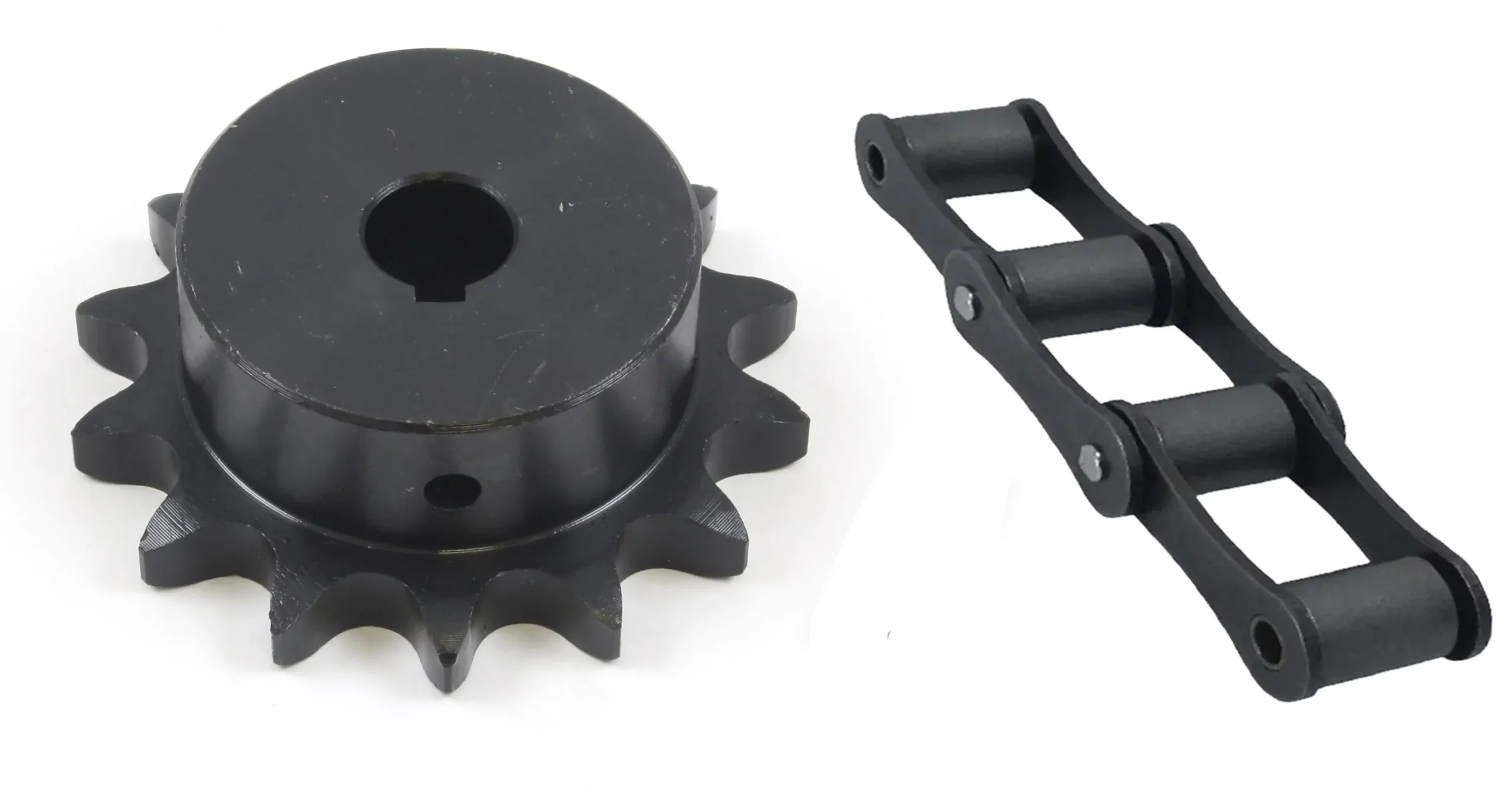

Agricultural Roller Chain Sprockets and Agricultural Roller Chain:

Agricultural roller chain sprockets and agricultural roller chains are commonly used in agricultural machinery to transmit power and motion between different components.

Agricultural roller chains are made up of a series of links that are connected by pins and rollers. The links have small teeth or protrusions that engage with the teeth of the sprockets, which are mounted on shafts or other rotating components. As the sprocket rotates, it pulls the chain along with it, transmitting power and motion to other parts of the machine.

Agricultural roller chain sprockets are designed to match the pitch and width of the chain, and they come in a variety of sizes and configurations to suit different applications. They are typically made of hardened steel or other durable materials to withstand the stresses of heavy use in agricultural machinery.

Proper maintenance and lubrication are important for ensuring the longevity and performance of agricultural roller chains and sprockets. Regular inspection and replacement of worn or damaged components can also help prevent costly downtime and repairs.

ep-roller-chain-10.12webp

China Agricultural Roller Chain Suppliers

We specialize in chains made to customers’ drawings and specifications. Our advantage is reliable quality, competitive price, prompt delivery, and good service. Standard products include various transmission and conveyor chains, like roller chains, double pitch conveyor chains, hollow pin chains, leaf chains, flat top chains, side bow chains, lumber conveyor chains, 81X chains, agricultural chains, CA550 roller chains, S55 roller chains, silent chains, X458 conveyor chains, PIV chains, stainless steel chains, nickel/ zinc plated chain, slient chain, engineering chain, steel pintle chain, welded steel chain, drop forged chain, malleable iron chain, and many other types. Different kinds of attachments are available.

We are one of the best roller chain manufacturers. We have exported our products to clients around the world and earned a good reputation because of our superior product quality and after-sales service. We warmly welcome customers both at home and abroad to contact us to negotiate business, exchange information, and cooperate with us!
