The S42 agricultural roller chain is a type of roller chain that is commonly used in agricultural applications, such as in combine harvesters, balers, and other farm equipment. It is a high-strength chain that is designed to handle heavy loads and withstand the harsh operating conditions of the agricultural industry.

The "S42" designation refers to the chain's pitch, which is the distance between the centers of adjacent rollers in the chain. In this case, the pitch is 34.93 mm. The agricultural chain is made up of a series of interconnected links, with each link consisting of two outer plates, a pin, and a bushing. The rollers are mounted on the bushings and rotated on the pins, allowing the chain to move smoothly and transmit power from one component to another.

The S42 agricultural roller chain is typically made from high-quality steel and is available in a range of sizes and configurations to fit different agricultural applications. It is important to select the appropriate chain size and strength for the specific application in order to ensure reliable operation and prevent premature wear or failure.

ep-roller-chain-11

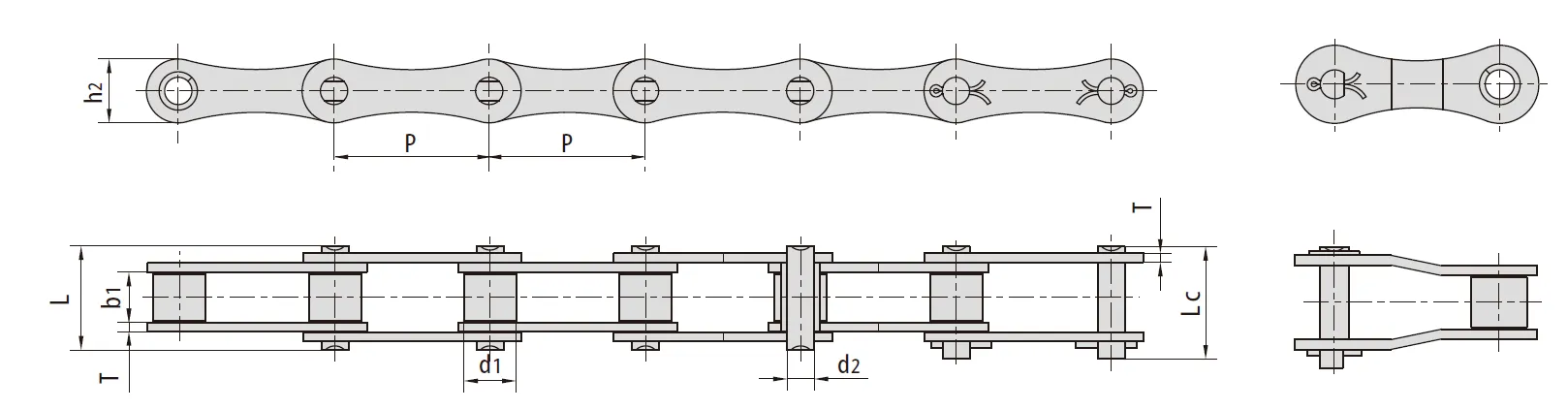

S42 Chain (Agricultural Chain) Dimensions:

ep-roller-chain-7.11webp

Chain No: S42 Chain
Pitch (P): 34.93mm
Roller Diameter (d1): 14.27mm
Width Between Inner Plates (b1): 19.05mm
Pin Diameter (d2): 7.00mm
Pin Length (L): 34.3mm
Connecting Link Pin Length (Lc): 37.0mm
Inner Plate Depth (h2): 19.8mm
Plate Thickness (T): 2.8mm
Tensile Strength: 8,992 LBS
Weight Per Meter: 3.53 LBS

Features of S42 Agricultural Roller Chain:

here are the features of the S42 agricultural roller chain:

1. Designed for use in agricultural equipment. The S42 agricultural roller chain is specifically designed for use in agricultural equipment, such as tractors, harvesters, and balers. It is made from high-quality materials and is built to withstand the harsh conditions found in agricultural applications.

2. Solid rollers for added durability. The S42 agricultural roller chain features solid rollers that are made from high-quality steel. The solid rollers provide added durability and wear resistance, which can help to extend the life of the chain.

3. Heat-treated components for strength and wear resistance. The S42 agricultural roller chain has heat-treated components, which provide added strength and wear resistance. The heat treatment process helps to harden the components and make them more resistant to wear.

4. Light high-quality lubricant for extended working life. The S42 agricultural roller chain is supplied with a light high-quality lubricant. The lubricant helps to reduce friction and wear, which can help to extend the life of the chain.

5. Meets DIN 8189 standards. The S42 agricultural roller chain meets DIN 8189 standards, which is a set of international standards for roller chains. This ensures that the chain is of high quality and meets the requirements for use in agricultural equipment.

Agricultural Chain Sprockets for Agricultural Chains:

Agricultural chain sprockets are used to transmit power between two or more shafts in agricultural equipment. They are typically made from cast iron or steel and have hardened teeth to resist wear and tear. Agricultural chain sprockets come in a variety of sizes and pitches to match the specific requirements of the application.

Agricultural chains are used to connect the sprockets and transmit power between the shafts. They are typically made from high-quality steel and have a series of rollers that help to reduce friction and wear. Agricultural chains come in a variety of sizes and strengths to match the specific requirements of the application.

Here are some of the key features of agricultural chain sprockets and agricultural chains:

  • Durability: Agricultural chain sprockets and agricultural chains are designed to be durable and withstand the harsh conditions found in agricultural applications. They are made from high-quality materials and are built to last.
  • Strength: Agricultural chain sprockets and agricultural chains are strong enough to transmit power over long distances and under heavy loads.
  • Performance: Agricultural chain sprockets and agricultural chains provide smooth and efficient power transmission, which can help to improve the performance of agricultural equipment.
  • Safety: Agricultural chain sprockets and agricultural chains are designed to be safe to use in agricultural applications. They are made from materials that are resistant to corrosion and wear, and they have features that help to prevent accidents.

If you are looking for a high-quality, durable, and reliable agricultural chain sprocket and chain for use in agricultural equipment, there are a few things you should keep in mind:

  • The type of agricultural equipment: The type of agricultural equipment you are using will determine the size and type of chain sprocket or chain you need.
  • The power requirements: The power requirements of your agricultural equipment will determine the strength and performance of the chain sprocket or chain you need.
  • The environment: The environment in which your agricultural equipment will be used will determine the corrosion resistance and wear resistance of the chain sprocket or chain you need.

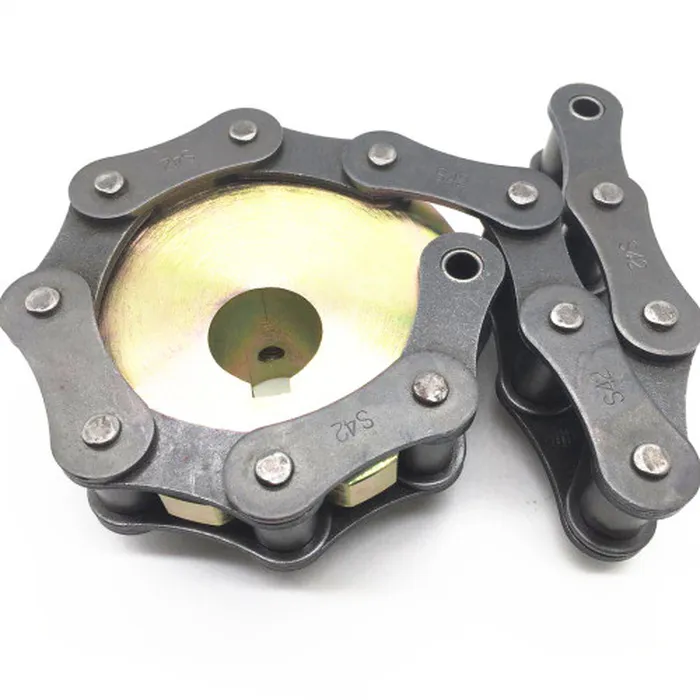

ep-roller-chain-11.11webp
