S32 Agricultural Roller Chain

As one of the roller chain manufacturers, suppliers, and exporters of mechanical products, We offer roller chains and many other products.

Please get in touch with us for details.

Mail:[email protected]

Roller Chain

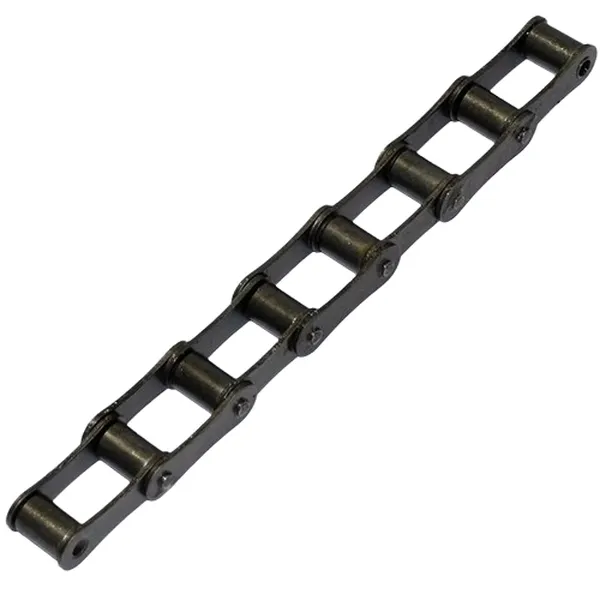

S32 agricultural roller chain is a type of roller chain that is specifically designed for use in agricultural equipment. It is manufactured to DIN8189 standards and features solid rollers, heat treated components, and is supplied with a light, high-quality lubricant for extended working life. S32 agricultural chain has a pitch of 29.21mm, a roller diameter of 11.43mm, a width between inner plates of 15.88mm, a pin diameter of 4.45mm, a pin length of 26.7mm, a connecting link pin length of 28.8mm, an inner plate depth of 13.2mm, and a plate thickness of 1.8mm. The tensile strength of the S32 agricultural roller chain is 5,620 lbs. The weight per meter is 1.9 lbs. S32 agricultural roller chain is a popular choice for a variety of agricultural applications, such as conveyors, balers, and harvesters. It is known for its durability, reliability, and long service life.

ep-roller-chain-12

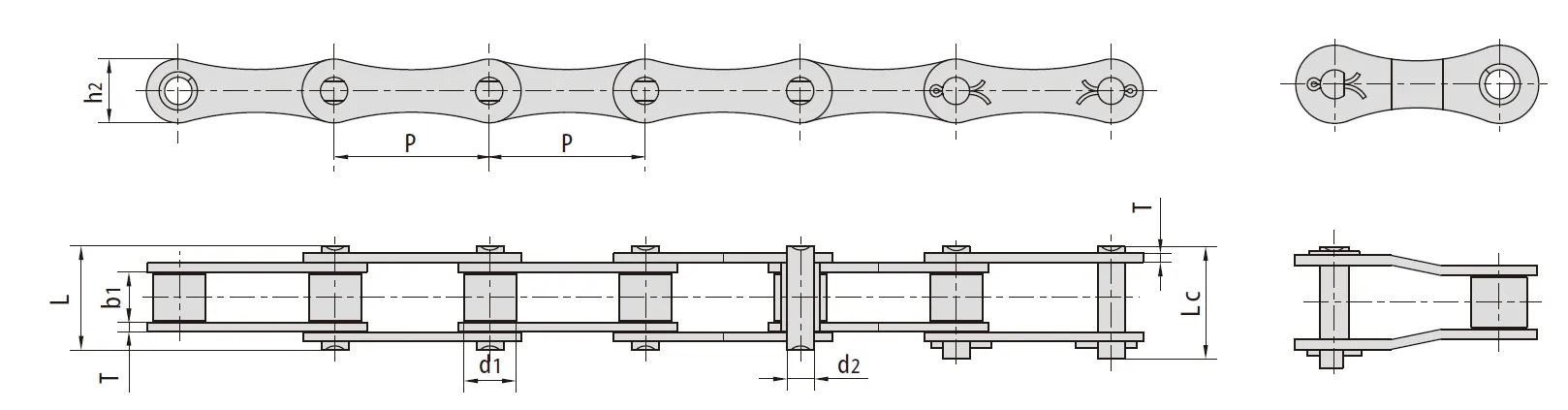

S32 Chain (Agricultural Chain) Dimensions:

ep-roller-chain-7.11webp

Chain No: S32 Chain
Pitch (P): 29.21 mm
Roller Diameter (d1): 11.43 mm
Width Between Inner Plates (b1): 15.88 mm
Pin Diameter (d2): 4.45 mm
Pin Length (L): 26.7 mm
Connecting Link Pin Length (Lc): 28.8 mm
Inner Plate Depth (h2): 13.2 mm
Plate Thickness (T): 1.8 mm
Tensile Strength: 5,620 LBS
Weight Per Meter: 1.9 LBS

Advantages of S32 Agricultural Roller Chain:

Here are some of the advantages of using the S32 agricultural roller chain:

1. Durability: The S32 agricultural roller chain is made of heat-treated components and features solid rollers, making it a durable and long-lasting chain. It can withstand the harsh conditions of agricultural applications, such as dirt, dust, and moisture.

2. Reliability: The S32 agricultural chain is a well-designed and engineered chain that is reliable and performs well in a variety of applications. It is capable of transmitting high torques and speeds, making it ideal for use in agricultural equipment such as tractors, harvesters, and balers.

3. Affordability: The S32 agricultural roller chain is a relatively affordable chain, making it a good value for the price. It is a cost-effective option for agricultural applications where durability and reliability are important factors.

4. Easy to maintain: The S32 agricultural chain requires regular lubrication to maintain its performance. However, it is relatively easy to lubricate, and the maintenance requirements are minimal.

5. Wide range of applications: The S32 agricultural roller chain can be used in a wide variety of agricultural applications. It is a versatile chain that can be used in a variety of different configurations.

6. Long service life: The S32 agricultural chain has a long service life, making it a cost-effective investment for agricultural applications.

Applications of S32 Agricultural Roller Chain:

The S32 agricultural roller chain is a versatile chain that can be used in a wide variety of agricultural applications. Some of the most common applications include:

  • Tractors: The S32 chain is commonly used in tractors for powering the various components of the tractor, such as the wheels, the PTO, and the hydraulics.
  • Harvesters: The S32 chain is used in harvesters for powering the various components of the harvester, such as the header, the threshing drum, and the fans.
  • Balers: The S32 chain is used in balers for powering the various components of the baler, such as the baling chamber, the baling press, and the bale ejector.
  • Combines: The S32 chain is used in combines for powering the various components of the combine, such as the header, the threshing drum, and the grain elevator.
  • Other agricultural equipment: The S32 chain can also be used in a variety of other agricultural equipment, such as irrigation systems, feed mills, and grain storage facilities.

The S32 agricultural roller chain is a durable, reliable, and affordable chain that is well-suited for use in a variety of agricultural applications. It is a versatile chain that can be used in a variety of different configurations. The S32 chain has a long service life, making it a cost-effective investment for agricultural applications.

ep-roller-chain-12.11webp

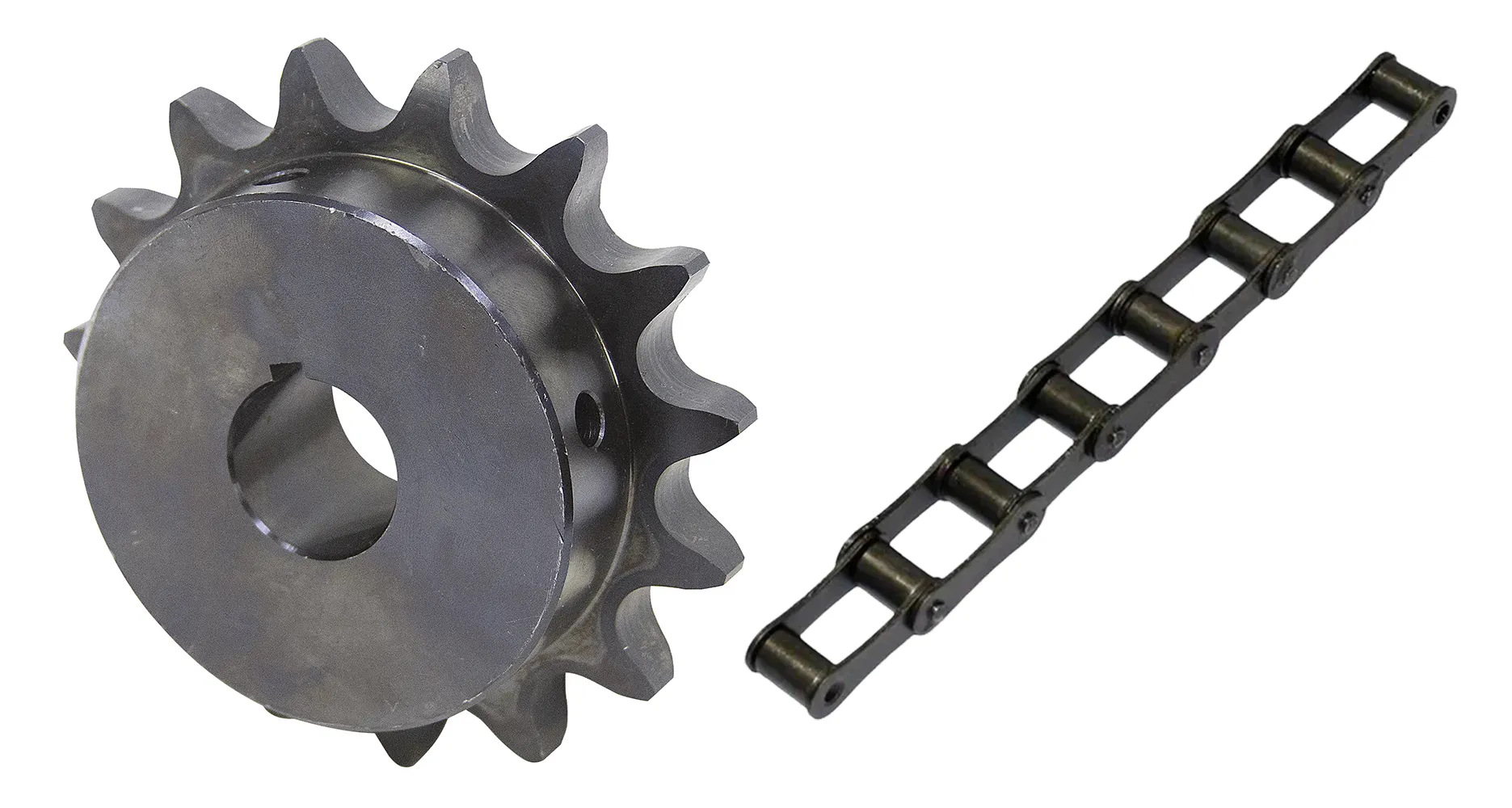

Agricultural Roller Chain Sprockets and Agricultural Roller Chain:

Agricultural roller chain sprockets and agricultural roller chains are two important components used in agricultural machinery for transmitting power from the engine to the various working parts of the equipment.

Agricultural roller chain sprockets are toothed wheels that are mounted on the shafts of agricultural machinery such as combines, balers, and tractors. They are designed to mesh with the links of an agricultural roller chain and transmit torque from the engine to the wheels or other working components of the equipment. Agricultural roller chain sprockets are typically made of high-strength steel and are available in a range of sizes and configurations to suit different applications.

Agricultural roller chains are made up of a series of interlocking links that are connected to form a continuous chain. The links are typically made of steel and are designed to withstand high loads and stresses. Agricultural roller chains are used in a variety of agricultural machinery, such as tractors, combines, and harvesters, to transmit power from the engine to the wheels or other working components of the equipment.

The combination of agricultural roller chain sprockets and agricultural roller chains provides a reliable and efficient means of transmitting power in agricultural machinery. Proper maintenance and lubrication of these components are crucial to ensure their longevity and reliable operation.

ep-roller-chain-12.12webp

China Agricultural Roller Chain Suppliers

We specialize in chains made to customers’ drawings and specifications. Our advantage is reliable quality, competitive price, prompt delivery, and good service. Standard products include various transmission and conveyor chains, like roller chains, double pitch conveyor chains, hollow pin chains, leaf chains, flat top chains, side bow chains, lumber conveyor chains, 81X chains, agricultural chains, CA550 roller chains, S55 roller chains, silent chains, X458 conveyor chains, PIV chains, stainless steel chains, nickel/ zinc plated chain, slient chain, engineering chain, steel pintle chain, welded steel chain, drop forged chain, malleable iron chain, and many other types. Different kinds of attachments are available.

We are one of the best roller chain manufacturers. We have exported our products to clients around the world and earned a good reputation because of our superior product quality and after-sales service. We warmly welcome customers both at home and abroad to contact us to negotiate business, exchange information, and cooperate with us!
